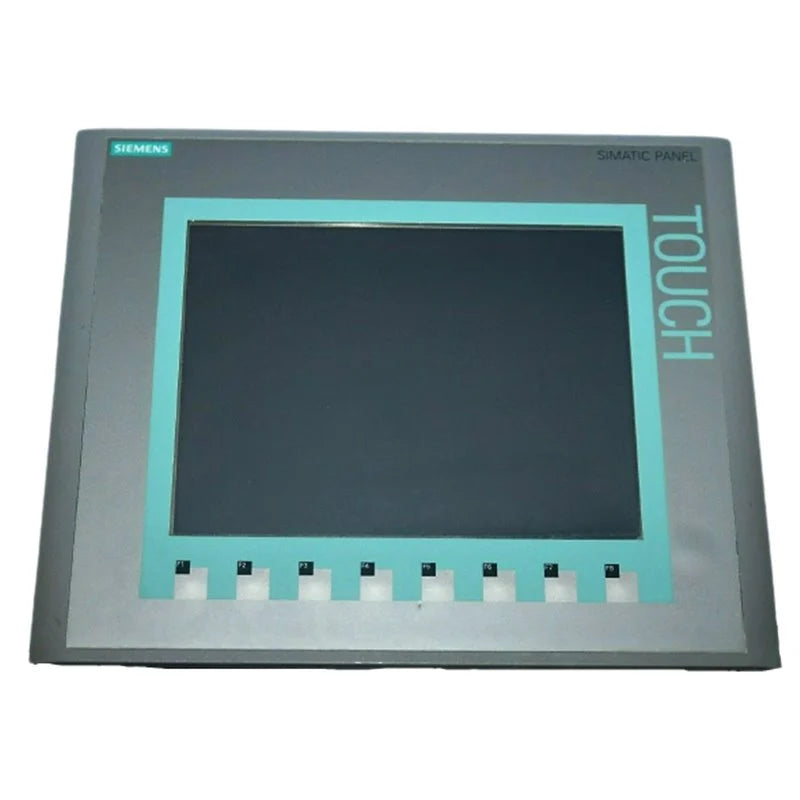

Siemens 6AV6647-0AF11-3AX0 HMI SIMATIC 6AV66470AF113AX0

Description:

The Siemens 6AV6647-0AF11-3AX0 SIMATIC HMI KTP1000 Basic Color PN is an operator interface panel used in industrial automation systems for machine visualization, monitoring, and control. Commonly installed in control panels, production lines, and process systems to display process data, alarms, and operator inputs. Maintenance teams, OEMs, and system integrators use this HMI for system integration, retrofit, or replacement of operator interface panels.

Applications:

The Siemens 6AV6647-0AF11-3AX0 is designed for human-machine interface applications in industrial environments where operators need clear visualization and control of processes. It is widely used in manufacturing plants, packaging systems, water treatment facilities, and automation lines where real-time monitoring and operator interaction are essential. With both key and touch operation and PROFINET communication, it enables seamless integration with Siemens PLC systems such as S7-1200 and S7-1500 for efficient process control.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6AV6647-0AF11-3AX0
• Product Type: HMI Operator Panel
• Series: SIMATIC HMI KTP1000 Basic Color PN
• Display: 10.4" TFT color display (256 colors)
• Resolution: 640 x 480 pixels
• Operation: Key + touch interface (8 function keys + touchscreen)
• Communication: PROFINET / Industrial Ethernet
• Protocols: TCP/IP, Modbus TCP/IP, EtherNet/IP
• Supply Voltage: 24V DC (19.2–28.8V range)
• Power Consumption: Approx. 15 W
• Memory: Flash + RAM, ~2 MB user data
• Processor: 32-bit RISC processor
• Protection Rating: IP65 front / IP20 rear
• Mounting: Panel mount (landscape orientation)
• Dimensions: Approx. 335 x 275 x 60 mm
• Weight: Approx. 2.65 kg
• Software: WinCC Flexible / WinCC Basic (TIA Portal) compatible
• Lifecycle Status: Phase-out / discontinued

Common Replacements:

• Siemens 6AV2123-2GB03-0AX0
• Siemens 6AV2124-0JC01-0AX0
• Siemens 6AV2124-0MC01-0AX0
