Product Description

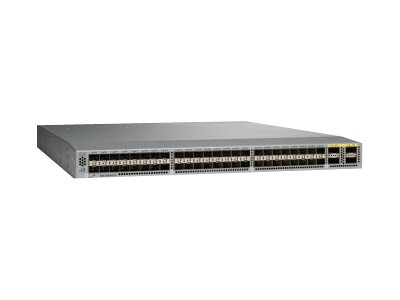

N3KC3064PQ10GE NEXUS 3064-E 48 SFP+ & 4 QSFP + PORTS WITH ENH SCALE The Cisco N3K-C3064PQ-10GE is a high-performance, top-of-rack (ToR) switch designed for data center environments requiring high-density, low-latency connectivity. It features 64 10-Gigabit Ethernet ports and is part of Cisco's Nexus 3000 Series, known for its excellent performance and efficiency in large-scale data center and high-frequency trading environments. The N3K-C3064PQ-10GE supports advanced Layer 2 and Layer 3 features, including high-density virtualized environments and enhanced network virtualization capabilities. Its design provides high throughput and low latency, making it ideal for demanding applications and data-intensive tasks.

Technical Specifications

• Ports:
• 64 x 10G SFP+ Ethernet ports
• Uplink Options:
• 4 x 40G QSFP+ uplink ports (via breakout cables or modules)
• Performance:
• Switching Capacity: 1.28 Tbps
• Forwarding Rate: 960 Mpps
• Layer Support: Layer 2 and Layer 3 (advanced routing protocols including OSPF, BGP)
• Network Features: VLANs, QoS, and network virtualization
• Power Supply: Dual redundant, hot-swappable power supplies
• Cooling: Redundant, hot-swappable fans
• Dimensions: 44.5 x 43.0 x 4.4 cm (1 RU form factor)
• Weight: 8.2 kg
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Management: Managed via Cisco NX-OS software with CLI and GUI support
