Product Description

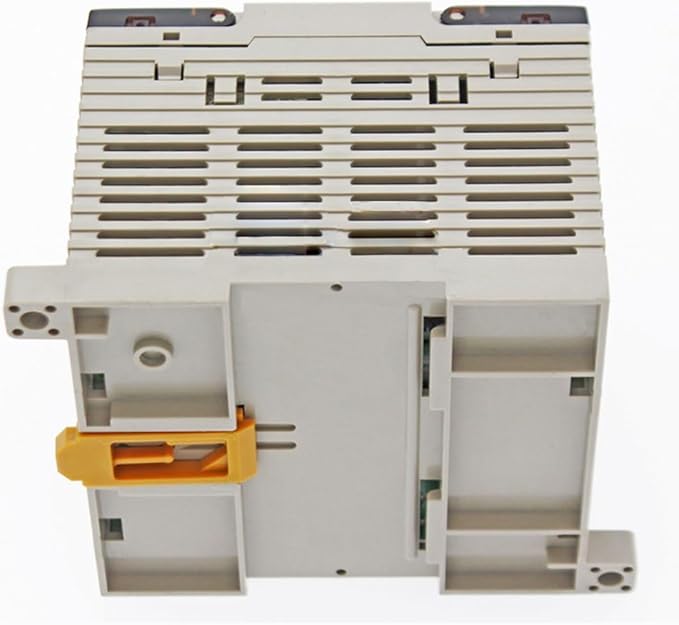

CPM1A40CDRDV1 CPU TERMINAL I/O 24VDC/INPUT 16PT/OUTPUT Product Description The Omron CPM1A-40CDR-D-V1 is a comprehensive programmable logic controller (PLC) designed to offer reliable control and monitoring for various automation applications. This model features 40 I/O points, including a combination of digital inputs and outputs, providing a flexible solution for a wide range of industrial tasks. The CPM1A-40CDR-D-V1 supports fast processing and robust performance, making it suitable for complex control requirements. Its compact design allows for easy integration into control systems, enhancing efficiency and functionality.

Technical Specifications

• Model: CPM1A-40CDR-D-V1
• Type: Programmable Logic Controller (PLC)
• I/O Configuration: 24 Digital Inputs, 16 Digital Outputs
• Digital Input Voltage: 24 VDC
• Digital Output Rating: 24 VDC, 0.2 A per output
• Processing Speed: 0.8 ms per instruction (typical)
• Program Capacity: 4 KB
• Data Memory: 2 KB
• Communication Ports: 1 RS-232C (for programming and communication)
• Power Supply: 24 VDC
• Mounting Type: DIN Rail or Panel Mount
• Dimensions: 90 x 90 x 62 mm
• Weight: Approximately 300 g
• Operating Temperature: 0°C to 55°C
• Protection Rating: IP20
