Product Description

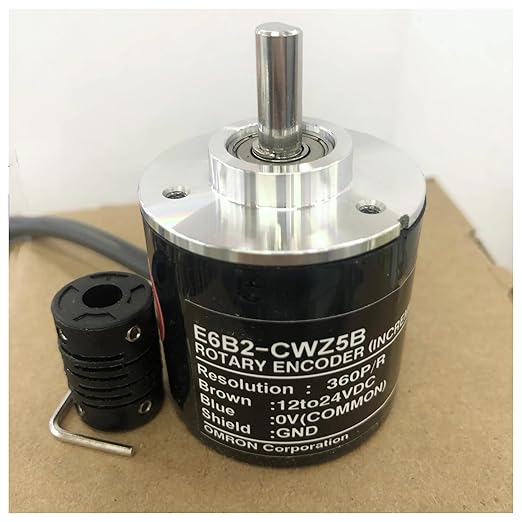

E6B2CWZ5B360PR05M ROTARY ENCODER CABLE: 0.5M 40MM DIA IP50 RADIAL PNP The E6B2-CWZ5B 360P/R 0.5M is a high-precision rotary encoder designed for applications requiring accurate position detection and rotational feedback. This encoder features a resolution of 360 pulses per revolution (P/R), making it ideal for use in automation systems, CNC machines, and robotics where precise angular measurement is critical. With a compact design and robust construction, the E6B2-CWZ5B ensures reliable performance in demanding environments. The 0.5-meter cable length provides ample flexibility for installation, while the durable shaft and housing protect the internal components from dust, moisture, and mechanical stress.

Technical Specifications

• Model Number: E6B2-CWZ5B 360P/R 0.5M
• Resolution: 360 pulses per revolution (P/R)
• Output Configuration: NPN open-collector output
• Supply Voltage: 5V to 24V DC
• Output Capacity:
• Load Current: 35mA max
• Residual Voltage: 0.4V max (at load current of 35mA)
• Phase Output: A, B, and Z phases
• Max Response Frequency: 100kHz
• Rotational Speed: 6000 RPM max
• Starting Torque: 9.8mN·m max
• Moment of Inertia: 1x10⁻⁶ kg·m²
• Shaft Diameter: 6 mm
• Housing Material: Die-cast aluminum
• Operating Temperature: -10°C to +70°C (non-freezing)
• Operating Humidity: 35% to 85% RH
• Cable Length: 0.5 meters (500mm)
• Vibration Resistance: 10 to 55 Hz, 1.5mm double amplitude
• Shock Resistance: 490 m/s², 3 times each in X, Y, Z directions
• Insulation Resistance: 100MΩ min. (at 500V DC)
• Dielectric Strength: 500V AC for 1 minute between non-current-carrying metal parts and each terminal
• Protection Class: IP50
• Mounting: Flange mounting with two M3 screws (included)
