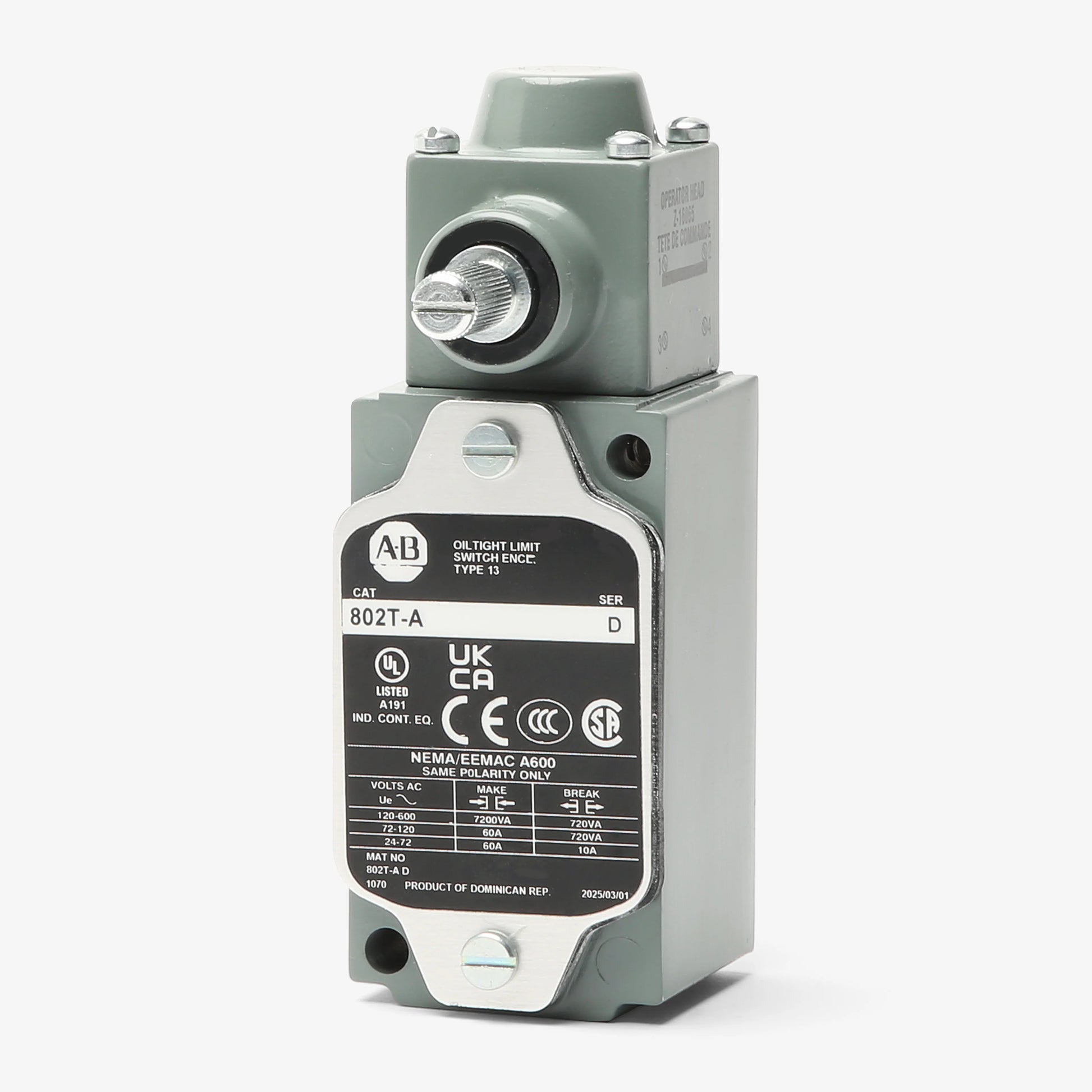

Allen Bradley 802T-A OILTIGHT LIMIT SWITCH BULLETIN 802TA

Description:

The Allen-Bradley 802T-A OilTight Limit Switch is used in industrial automation systems for position detection and end-of-travel control. Commonly installed in conveyor systems, machine tools, packaging equipment, and material handling processes requiring durable oil-tight switching. Maintenance teams and system integrators use this part for repair, retrofit, and replacement in demanding industrial environments.

Applications:

The Allen-Bradley 802T-A limit switch is used in industrial machinery where reliable and sealed position sensing is required. It is commonly applied in conveyor systems for object detection, packaging and bottling lines for sequencing, machine tools for limit positioning, and material handling systems to prevent overtravel and equipment damage in oil-exposed environments.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 802T-A
• Bulletin: 802T
• Product Type: OilTight Limit Switch
• Actuator Type: Plunger type (typical configuration)
• Contact Configuration: 1 NO + 1 NC
• Switching Mechanism: Snap action
• Rated Operational Voltage: Up to 600 VAC
• Rated Current: Up to 10 A
• Enclosure Type: Oil-tight metal housing
• Protection Rating: NEMA Type 1, 3, 4, 6, 13
• Operating Temperature: -20°C to +85°C
• Mounting Type: Surface mounting
• Conduit Entry: 1/2" NPT

Common Replacements:

• Allen-Bradley 802T-AP Limit Switch
• Allen-Bradley 802T-AT Limit Switch
• Schneider Electric XCKJ10541 Limit Switch
