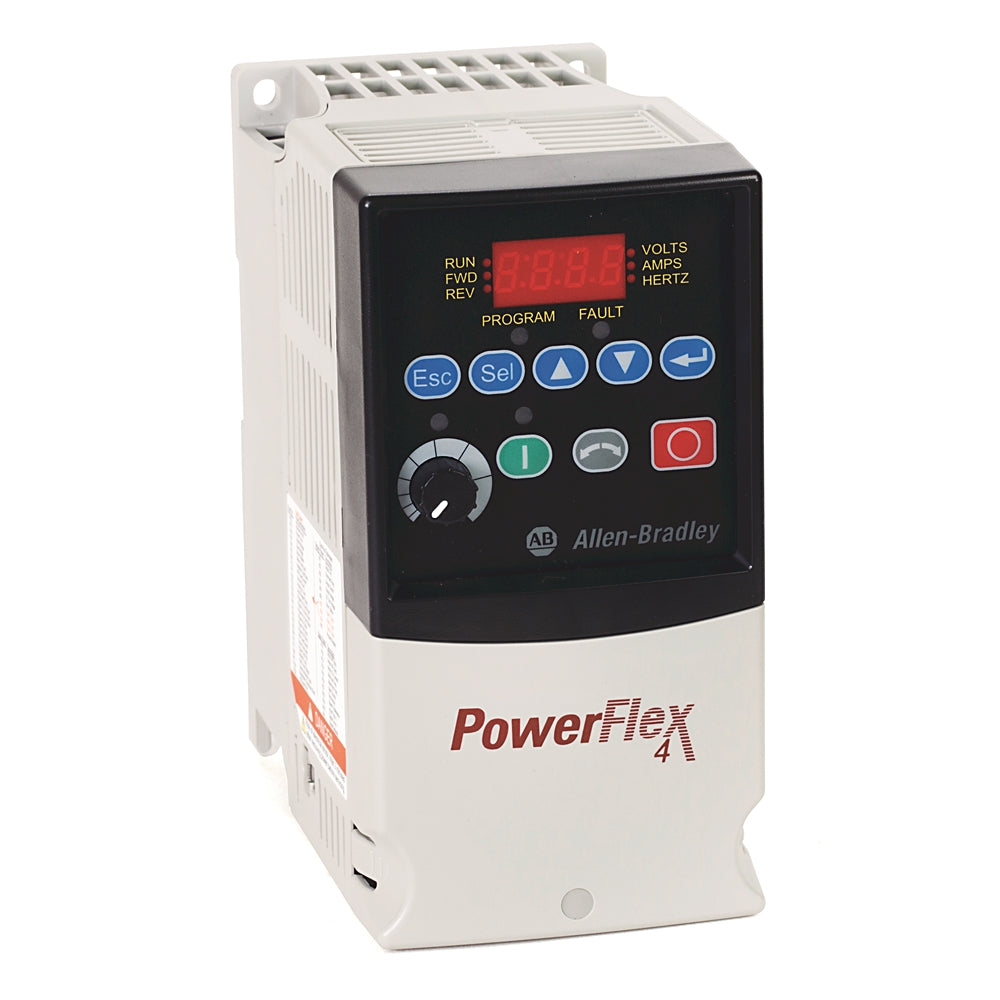

Allen-Bradley 22A-D6P0N104 4 AC Drive 3HP SEALED 22AD6P0N104

Description:

The Allen-Bradley 22A-D6P0N104 PowerFlex 4 AC Drive is a compact variable frequency drive designed for industrial motor control systems requiring adjustable speed and reliable operation. Built for 380–480V three-phase input, this 2.2 kW (3 HP) sealed drive provides dependable performance for pumps, fans, conveyors, and general-purpose machinery in demanding environments. Maintenance teams, OEMs, and system integrators use this drive for equipment repair, retrofit projects, system upgrades, and replacement of failed or aging VFD units in automated production systems.

Applications:

The Allen-Bradley 22A-D6P0N104 PowerFlex 4 AC drive is widely applied in industrial automation systems controlling three-phase induction motors. Typical installations include material handling systems, packaging equipment, HVAC units, and light manufacturing machinery where consistent motor speed control and compact panel design are required. Its sealed configuration makes it suitable for environments where additional protection from dust and contaminants is necessary.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Part Number: 22A-D6P0N104
• Series: PowerFlex 4
• Rated Output Current: 6.0 A
• Input Voltage: 380–480V AC, 3-phase
• Output Voltage: 0–460V AC
• Power Rating: 2.2 kW (3 HP)
• Control Method: V/Hz Control
• Enclosure Rating: IP30 (Sealed)
• Mounting Type: Panel mount
• Output Frequency Range: 0–400 Hz
• Ambient Operating Temperature: 0°C to 50°C (without derating)

Common Replacements:

• Allen-Bradley 22B-D6P0N104
• Allen-Bradley 25B-D6P0N104
• Siemens 6SL3210-1PE21-8UL0
