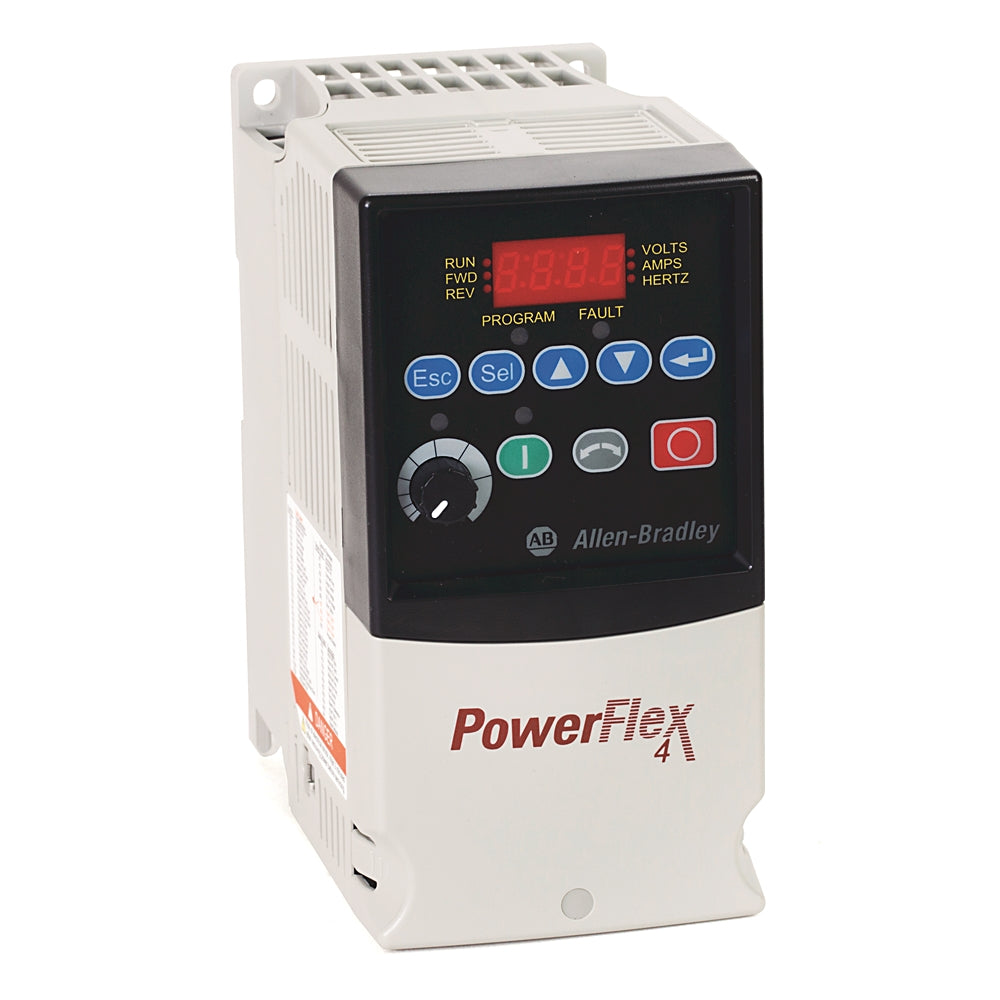

Allen-Bradley 22A-D8P7N104 4 3.7 kW 5 Hp AC Drive

Description:

The Allen-Bradley 22A-D8P7N104 PowerFlex 4 AC Drive is a compact variable frequency drive designed for industrial motor control systems requiring adjustable speed and dependable torque performance. Built for 380–480V three-phase input, this drive delivers 3.7 kW (5 HP) output with approximately 8.7 A rated current for mid-size motor applications. Maintenance teams, OEM machine builders, and system integrators use this drive for equipment repairs, control panel retrofits, automation upgrades, and replacement of existing VFD units in industrial motor control systems.

Applications:

The Allen-Bradley 22A-D8P7N104 PowerFlex 4 AC drive is commonly used in industrial automation systems to control three-phase induction motors in machine-level applications. Typical installations include conveyor systems, packaging machines, pumps, fans, compressors, and material handling equipment where reliable motor speed control and compact drive integration are required. Its small footprint and simple programming interface make it suitable for standalone machines and distributed motor control systems.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Part Number: 22A-D8P7N104
• Series: PowerFlex 4
• Rated Output Current: 8.7 A
• Input Voltage: 380–480V AC, 3-phase
• Output Voltage: 0–460V AC
• Power Rating: 3.7 kW (5 HP)
• Control Method: V/Hz Control
• Enclosure Rating: IP20 (Open Type)
• Mounting Type: Panel mount
• Output Frequency Range: 0–400 Hz
• Frequency Rating: 50–60 Hz
• Operating Temperature: 0°C to 50°C

Common Replacements:

• Allen-Bradley 22B-D8P7N104
• Allen-Bradley 25B-D8P7N104
• Siemens 6SL3210-1PE21-5UL0
