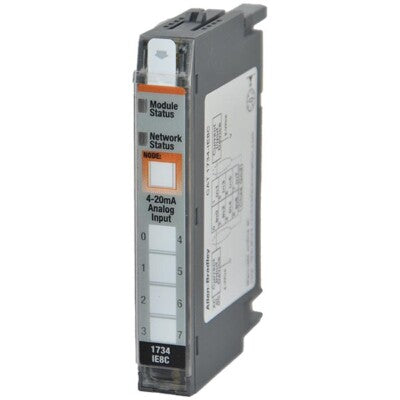

Allen-Bradley POINT I/O 8 Point Analog Input Module 1734-IE8C

Description:

1734IE8C I/O ANALOG MODULE 8 SINGLE ENDED INPUTS 8 X 0-20MA 4-20MA 16 BIT RESOLUTION 24 VDC TB/TBS TERMINAL BASE PLUG-IN CONNECTION The Allen-Bradley 1734-IE8C is a high-performance analog input module for the POINT I/O system, designed to provide precise measurement and monitoring of analog signals in industrial automation applications. This module features 8 channels that can handle a wide range of voltage and current inputs, making it versatile for various sensing needs. It supports both single-ended and differential input configurations, and its compact size ensures efficient use of space within control panels.

Technical Specifications:

• Input Channels: 8
• Input Types: Voltage (±10V), Current (±20mA)
• Resolution: 16-bit
• Input Range:
• Voltage: ±10V
• Current: ±20mA
• Input Accuracy: ±0.1% of full scale (typical)
• Isolation: 1500V DC between input and backplane
• Operating Temperature Range: 0 to 60°C (32 to 140°F)
• Dimensions (H x W x D): Approximately 82.6 mm x 36 mm x 65 mm (3.25 in x 1.42 in x 2.56 in)
• Mounting Type: DIN Rail
• Status Indicators: LED indicators for power and input status
