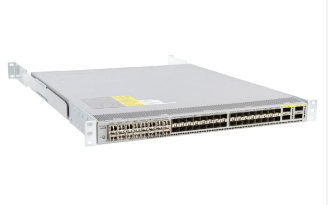

Cisco Nexus N3K-C3064PQ-10GE 48-Port Managed Ethernet Switch Dual AC

Description:

The Cisco N3K-C3064PQ-10GE is a high-performance, low-latency Layer 3 switch from the Nexus 3000 Series, designed for top-of-rack deployment in modern data centers. It provides 48 fixed 10 Gigabit SFP+ ports and 4 QSFP+ 40 Gigabit uplink ports, supporting up to 1.28 Tbps of throughput. With features like VXLAN support, low-latency switching, and comprehensive Layer 2 and Layer 3 functionality, this switch is ideal for virtualized and cloud-driven infrastructures requiring speed, scalability, and reliability.

TECHNICAL SPECIFICATIONS:

Model: N3K-C3064PQ-10GE
Series: Cisco Nexus 3000
Ports: 48 x 10GbE SFP+, 4 x 40GbE QSFP+
Throughput: Up to 1.28 Tbps
Forwarding Rate: Up to 950 Mpps
Layer Support: Layer 2 and Layer 3
Switching Latency: As low as 800 ns
VLANs Supported: 4,094
Jumbo Frame Support: Up to 9216 bytes
Airflow: Front-to-back or back-to-front (varies by model)
Power Supply: Dual redundant, hot-swappable
Fans: 3 hot-swappable fan trays
MAC Address Table Size: 32,000 entries
Protocols Supported: VXLAN, BGP, OSPF, EIGRP, PTP, VRF, LACP
Management: CLI, SNMP, Telnet, SSH, Cisco DCNM
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Dimensions: 1.75 in (H) x 17.3 in (W) x 19.7 in (D)
Weight: Approx. 22.5 lbs
