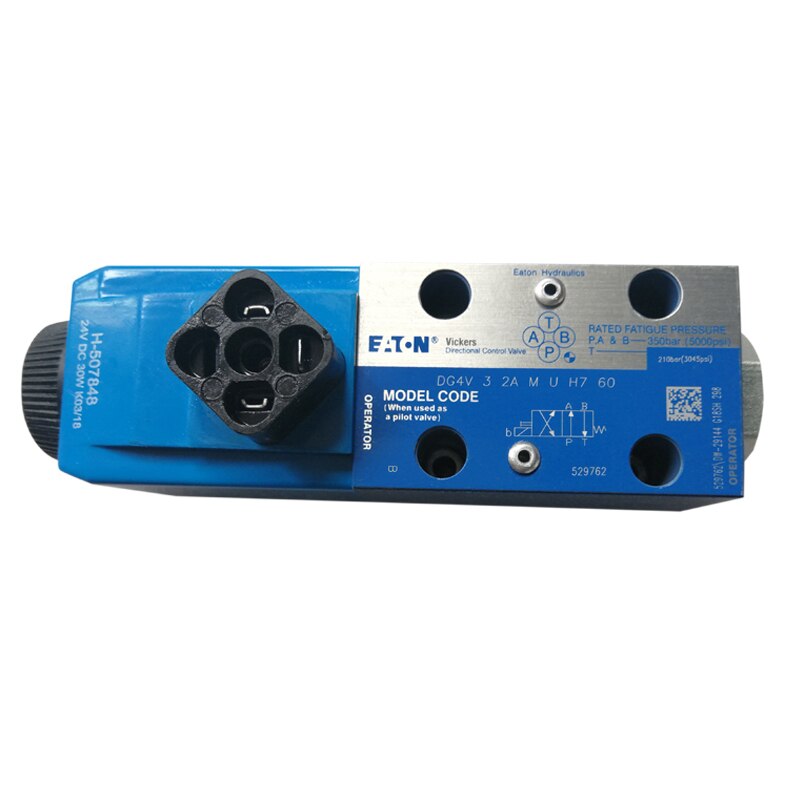

Eaton Vickers DG4V-3-2A-M-U-H7-60 529762 Directional Spool Valves

Description:

DG4V32AMUH760 DIRECTIONAL CONTROL VALVE 350 BAR (5000 PSI) MAX PRESSURE 20 GPM MAX FLOW SINGLE SOLENOID SPRING OFFSET CLOSED CENTER 24 VDC COIL DIN PLUG CONNECTOR TYPE BUNA SEALS (529762) The Eaton Vickers DG4V-3-2A-M-U-H7-60 is a directional spool valve designed for controlling the flow direction in hydraulic systems. This valve is known for its reliability and versatility in directing fluid flow to various actuators within hydraulic circuits. It is widely used in industrial applications where precise control of hydraulic actuators is required.

Technical Specifications:

• Model: DG4V-3-2A-M-U-H7-60
• Type: Directional Spool Valve
• Manufacturer: Eaton Vickers
• Valve Function: 4/3 (four ports and three positions)
• Actuation Type: Manual, electric, or pneumatic (depending on specific configuration)
• Flow Capacity: Typically up to 60 L/min (liters per minute)
• Pressure Rating: Rated for up to 350 bar (5,000 psi)
• Port Size:
• Inlet and outlet ports typically use standard SAE or BSP threads
• Specific port sizes may vary based on configuration
• Spool Type:
• Standard spool for directional control
• Options for different spool configurations (e.g., open center, closed center)
• Mounting Type:
• Typically flanged or subplate mounting options
• Temperature Range:
• Operating temperature typically ranges from -20°C to 80°C (-4°F to 176°F)
• Material:
• High-strength materials for durability and performance in hydraulic applications
• Features:
• Precise control of hydraulic fluid flow direction
• High pressure and flow capacity for demanding applications
• Reliable performance with low maintenance requirements
• Various spool configurations available to meet different application needs
• Compatible with Eaton Vickers hydraulic systems and components
