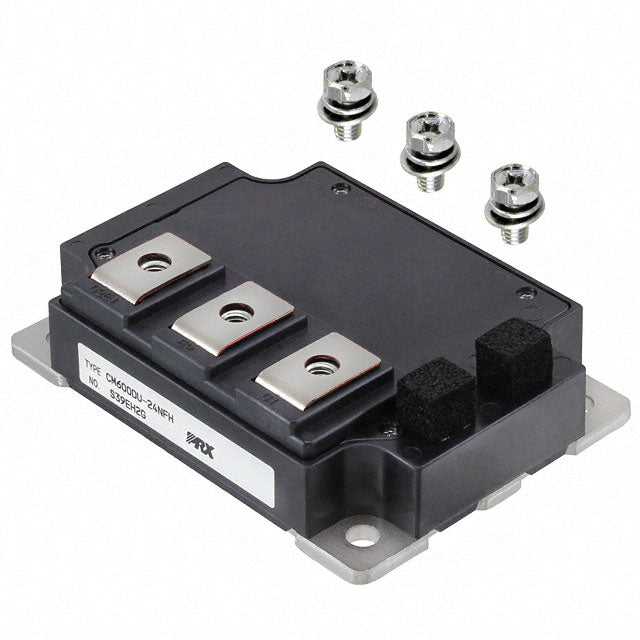

Mitsubishi CM600DU-24NFH IGBT Module CM600DU24NFH

Description:

The Mitsubishi CM600DU-24NFH is a high-power IGBT (Insulated Gate Bipolar Transistor) module designed for high-frequency switching applications in industrial power systems. Commonly installed in inverters, power supplies, induction heating systems, and large industrial drives, it provides efficient switching and high current handling in demanding environments. Maintenance teams, system integrators, and OEMs use this module for power conversion, system upgrades, and replacement of high-power semiconductor modules in applications requiring robust switching performance and reliability.

Applications:

This Mitsubishi IGBT module is used in high-power industrial applications requiring efficient switching and power control. Typical applications include induction heating systems, UPS systems, motor drives, renewable energy converters, welding equipment, and high-frequency power supplies where stable high-current operation and thermal performance are critical.

Technical Specifications:

• Manufacturer Part Number (MPN): CM600DU-24NFH
• Product Type: IGBT Power Module (Dual / Half-Bridge)
• Configuration: Dual switch (2-in-1 module)
• Collector-Emitter Voltage (VCES): 1200 V
• Collector Current (IC): 600 A (continuous)
• Pulse Current (ICRM): Up to 1200 A
• Gate-Emitter Voltage (VGES): ±20 V
• Power Dissipation: ~3670 W
• Junction Temperature Range: -40 °C to +150 °C
• Storage Temperature: -40 °C to +125 °C
• Isolation Voltage: ~2500–4000 V
• Switching Frequency: ~30 kHz to 60 kHz (typical use)
• Internal Components: IGBT + free-wheel diode (integrated)
• Mounting: Baseplate module (screw mount to heatsink)
• Cooling: External heatsink required
• Weight: Approx. 580 g

Common Replacements:

• Mitsubishi CM600DU-24H
• Mitsubishi CM600DU-24F
• Infineon FF600R12ME4
