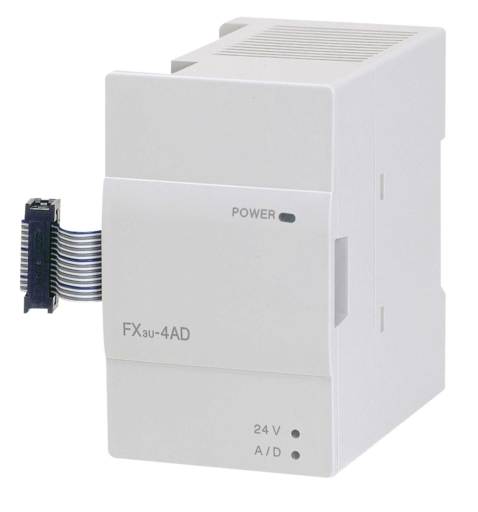

Mitsubishi FX3U-4AD Melsec Analog Input Module FX3U4AD

Description:

FX3U4AD PROGRAMMABLE CONTROLLER FX3U SERIES PLC 4-CHANNEL ANALOG INPUT MODULE FOR FX3U POWER SUPPLY: 24 VDC INPUT: -10~+10 VDC -20~+20 MA The Mitsubishi FX3U-4AD is an analog input module for the Mitsubishi MELSEC FX3U series programmable logic controllers (PLCs). This module is designed to provide high-precision analog signal acquisition, enabling the PLC to interface with analog devices such as sensors and transducers. The FX3U-4AD module offers reliable data acquisition with high resolution and accuracy, making it ideal for applications requiring precise measurement and control in automation systems.

Technical Specifications:

• Model Number: FX3U-4AD
• Type: Analog Input Module
• Series: MELSEC FX3U
• Channels: 4 analog input channels
• Input Types:
• Voltage Input: 0-10V, 0-5V, or 1-5V (configurable)
• Current Input: 4-20mA
• Resolution:
• Voltage Input Resolution: 12-bit (4096 points)
• Current Input Resolution: 12-bit (4096 points)
• Input Range:
• Voltage Input Range: Configurable within specified ranges
• Current Input Range: Configurable within 4-20mA
• Sampling Rate: Up to 10 ms per channel (depends on system configuration)
• Accuracy:
• Voltage Accuracy: ±0.1% of full scale (typical)
• Current Accuracy: ±0.1% of full scale (typical)
• Power Supply: Powered by the FX3U PLC system
• Communication: Connects directly to the FX3U PLC via dedicated I/O bus
• Mounting: Designed for installation on FX3U series PLC backplane
• Operating Temperature Range: Typically 0°C to 55°C (32°F to 131°F)
• Compliance and Certifications: Complies with international safety and quality standards
