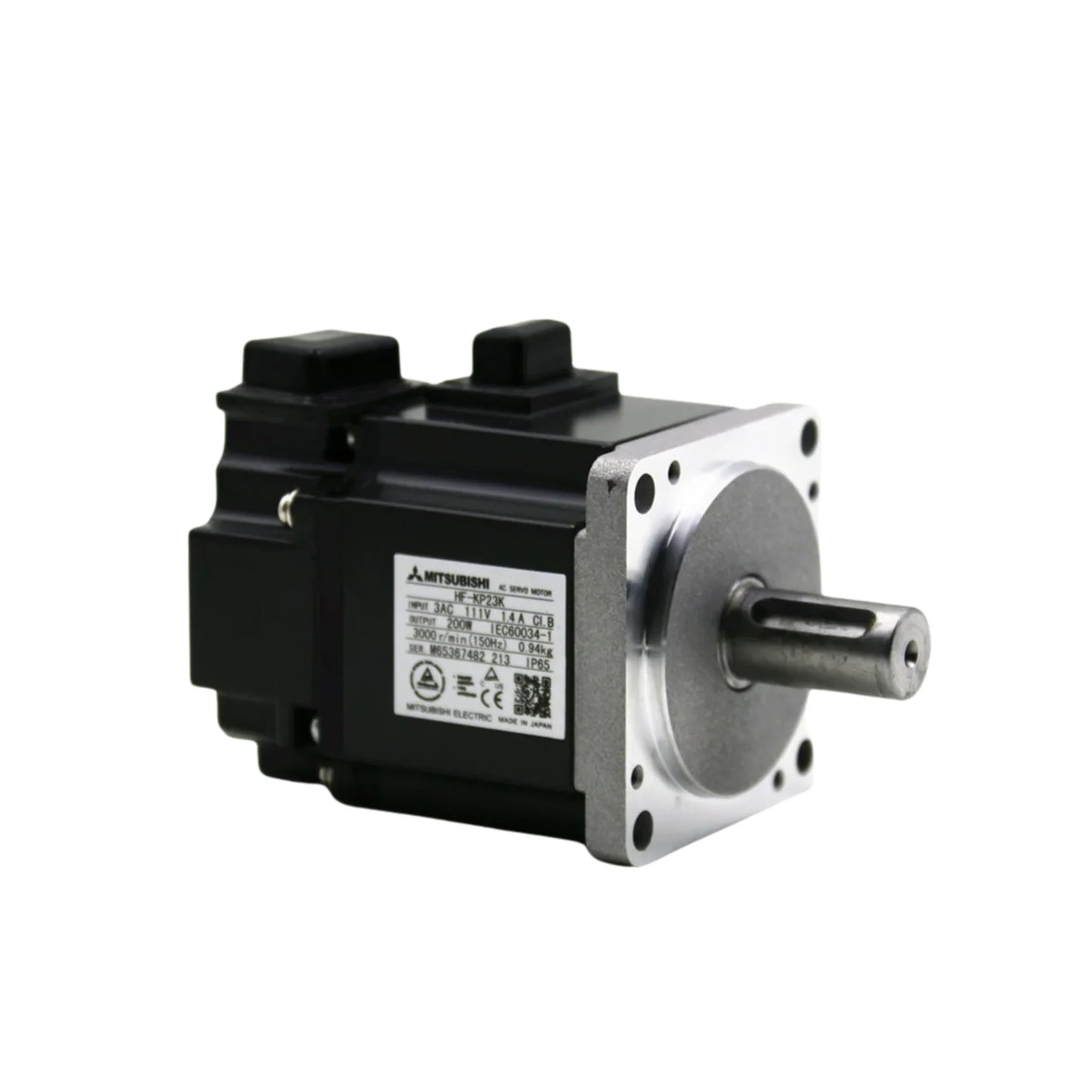

Mitsubishi HF-KP23K Servo Motor HFKP23K

Description:

HFKP23K AC SERVO MOTOR HF SERIES ULTRA LOW INERTIA 0.2 KW OUTPUT 3000 RPM W/O EM BRAKE KEYWAY SHAFT The HF-KP23K is a high-performance AC servo motor from Mitsubishi Electric's HF series, designed to deliver precise motion control and reliable performance in various industrial applications. With a rated output power of 0.2 kW, this motor excels in tasks requiring high-speed operation and accurate torque management. Its advanced feedback encoder ensures precise positioning and speed control, making it ideal for applications such as CNC machinery, robotics, and automated assembly lines. The HF-KP23K's robust construction and compact design enable seamless integration into a wide range of automation systems, enhancing overall operational efficiency and precision.

Technical Specifications:

• Type: AC Servo Motor
• Model: HF-KP23K
• Rated Output Power: 0.2 kW (200W)
• Rated Voltage: 200V AC
• Rated Current: 1.0 A
• Rated Speed: 3000 RPM
• Encoder Resolution: 20-bit (4096 pulses per revolution)
• Torque Constant: 0.8 Nm/A
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Insulation Class: Class F
• Protection Rating: IP65 (dust-tight and water-resistant)
• Dimensions: Approximately 60 mm (Ø) x 130 mm (L) (specific dimensions may vary)
• Weight: Approximately 2.0 kg (4.4 lbs) (specific weight may vary)
• Compliance: CE, RoHS compliant
