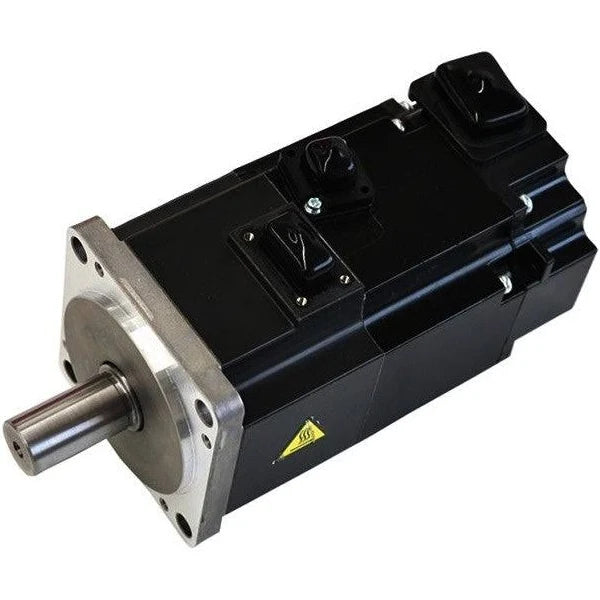

Mitsubishi HG-KR73 Servo motor HGKR73

DESCRIPTION

The Mitsubishi HG-KR73 is a high-speed, compact servo motor from the MELSERVO-J4 series, offering 750 watts of rated power. It’s designed for applications requiring precision, responsiveness, and space-saving installation. With a rated speed of 3000 RPM and maximum speed of 6000 RPM, this rotary servo motor features a 22-bit absolute encoder for precise positioning and smooth operation. The HG-KR series motors are optimized for integration with Mitsubishi's MR-J4 servo amplifiers and are ideal for use in high-performance machinery such as packaging systems, pick-and-place robots, and automated assembly lines.

TECHNICAL SPECIFICATIONS

Model: HG-KR73
Series: MELSERVO-J4
Rated Power Output: 750 W
Rated Torque: 2.4 Nm
Maximum Torque: 7.2 Nm
Rated Speed: 3000 RPM
Maximum Speed: 6000 RPM
Voltage: 3-Phase 200V AC
Encoder: 22-bit Absolute Encoder
Shaft Type: Straight shaft without key
Protective Structure: IP65 (excluding shaft-through portion)
Cooling Method: Natural cooling
Mounting: Flange mount
Motor Brake: Optional (model-dependent)
Ambient Operating Temperature: 0 to 40°C
