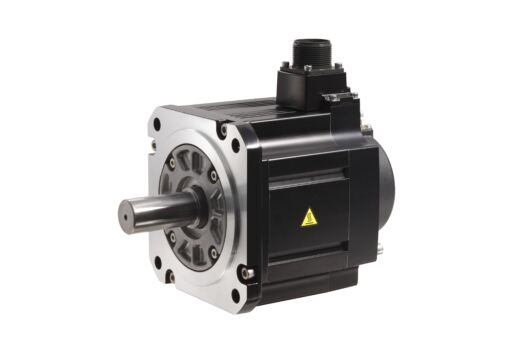

Mitsubishi HG-SR102 Servo Motor HGSR102

Description:

The Mitsubishi HG‑SR102 Servo Motor is a brushless AC servo motor used in precision motion control applications to provide accurate speed, position, and torque performance. Commonly installed in robotics, CNC machines, packaging systems, and automated assembly lines where controlled motion and high responsiveness are required. Maintenance teams and system integrators use this motor for replacement, retrofit, and system upgrades to ensure precise mechanical movements and improved automation performance.

Applications:

The Mitsubishi HG‑SR102 servo motor is used in industrial automation environments that demand high precision and reliable motion control. Typical applications include robotic arms, pick‑and‑place systems, labeling and printing machinery, indexing tables, conveyor positioning, and machining centers. Its robust design and feedback capabilities support smooth motion, quick response, and tight positional accuracy in manufacturing, material handling, and process control systems.

Technical Specifications:

• Manufacturer: Mitsubishi Electric
• Model / Part Number: HG‑SR102
• Product Type: AC Servo Motor
• Motor Type: Brushless synchronous AC servo
• Rated Power: ~100 W class (model dependent)
• Rated Speed: Typically ~3000 – 6000 RPM range (model dependent)
• Feedback: Encoder (incremental or absolute, model dependent)
• Voltage Class: 200 V AC class
• Shaft: Keyed output shaft for coupling
• Mounting: Flange mount
• Insulation: Industrial grade
• Protection: Designed for industrial environments
• Application: Precision motion control for automated systems

Common Replacements:

• Mitsubishi HG‑SR103 Servo Motor (alternate variation)
• Mitsubishi HC‑MF102 Servo Motor (similar class)
• Yaskawa SGMAV‑A5A3A Servo Motor
