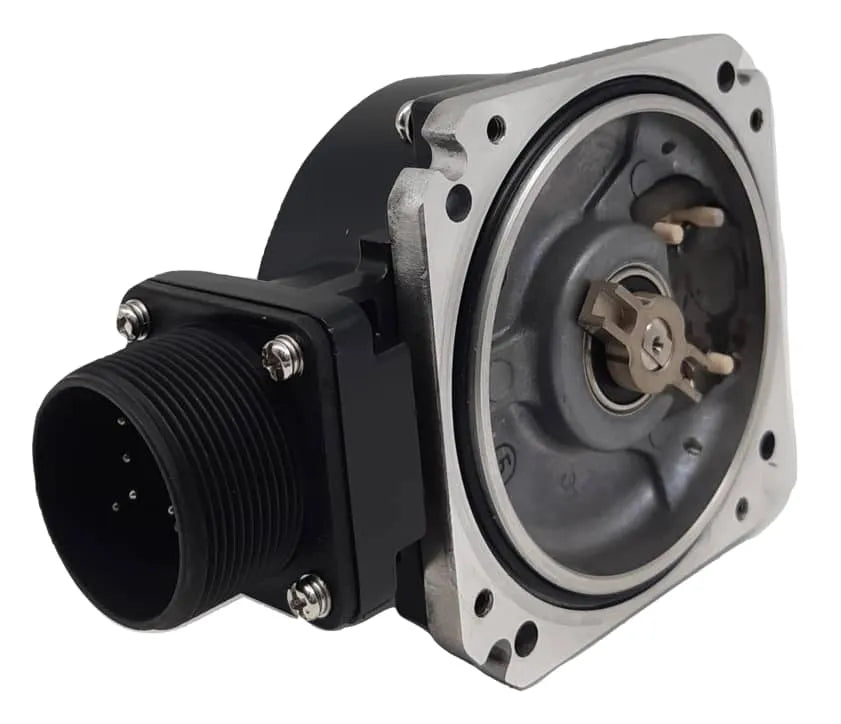

Mitsubishi OSA104S2 AC Servo Motor Encoder

Description:

The Mitsubishi OSA104S2 AC Servo Motor Encoder is a precision feedback device used with AC servo motors to provide accurate position, speed, and direction information for motion control systems. Commonly paired with Mitsubishi AC servo motors in CNC machines, robotics, and automated production equipment, it ensures synchronized motion and precise control. Maintenance teams, machine builders, and system integrators use this encoder for replacements, upgrades, and system integration where reliable feedback and high‑resolution positioning are critical.

Applications:

This Mitsubishi AC servo motor encoder is used in industrial automation systems requiring high‑accuracy position and speed feedback. Typical applications include CNC machining centers, robotics, automated assembly lines, conveyor systems, and packaging equipment where precise motion control and synchronization between motors and drives are essential for quality and performance.

Technical Specifications:

• Manufacturer Part Number (MPN): OSA104S2
• Product Type: AC Servo Motor Feedback Encoder
• Encoder Type: Incremental/absolute (model dependent)
• Resolution: High‑resolution position feedback (varies by configuration)
• Signal Output: Differential line driver or compatible servo drive interface
• Mounting Type: Servo motor shaft mount
• Operating Voltage: Typically 5 VDC excitation (drive supplied)
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -20°C to 70°C
• Shaft Type: Hollow or solid shaft depending on servo motor compatibility
• Protection Class: IP50 (housing)

Common Replacements:

• Mitsubishi OSA107S2
• Heidenhain ERN 1387
• Panasonic A6 Series Encoder
