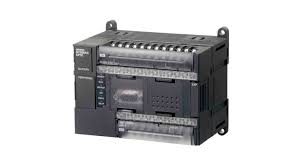

Omron CP1E-N30DT-D PROGRAMMABLE CONTROLLER I/O MODULE 18IN 12NPN RS232 PLC CP1EN30DTD

Description:

CP1EN30DTD PLC CPU MODULE 18 DIGITAL INPUTS PNP/NPN INPUT TYPE 12 DIGITAL OUTPUTS NPN OUTPUT TYPE 8 K STEPS 8 K WORDS 1 X RS-232 PORT 1 X USB PORT 100 KHZ The CP1E-N30DT-D is a compact and versatile programmable logic controller (PLC) from Omron, designed for efficient control and automation in a variety of industrial applications. This model features 30 I/O points with a mix of digital inputs and outputs, making it suitable for small to mid-sized automation tasks. It offers robust performance with a built-in high-speed counter and pulse output, supporting precise control for applications such as machinery and process automation. The CP1E-N30DT-D is engineered for ease of use, with a straightforward programming environment and a reliable design that ensures durability and operational efficiency.

Technical Specifications:

• Model: CP1E-N30DT-D
• Type: Programmable Logic Controller (PLC)
• I/O Configuration:
• Digital Inputs: 16 points
• Digital Outputs: 14 points (transistor output)
• Input Voltage: 24V DC
• Output Voltage: 24V DC
• Output Current: 0.2A per point, 2A total per common
• High-Speed Counter: 1 channel (up to 10 kHz)
• Pulse Output: 2 channels (up to 10 kHz)
• CPU Processing Speed: 0.065 ms/step (typical)
• Program Capacity: 8,000 steps
• Memory: 32 KB
• Communication Ports:
• 1 x RS-232C for programming and communication
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -20°C to 70°C
• Dimensions (W x H x D): 90 x 90 x 65 mm
• Weight: Approximately 300 g
• Mounting Type: DIN rail mount
• Protection Rating: IP20 (terminals)
