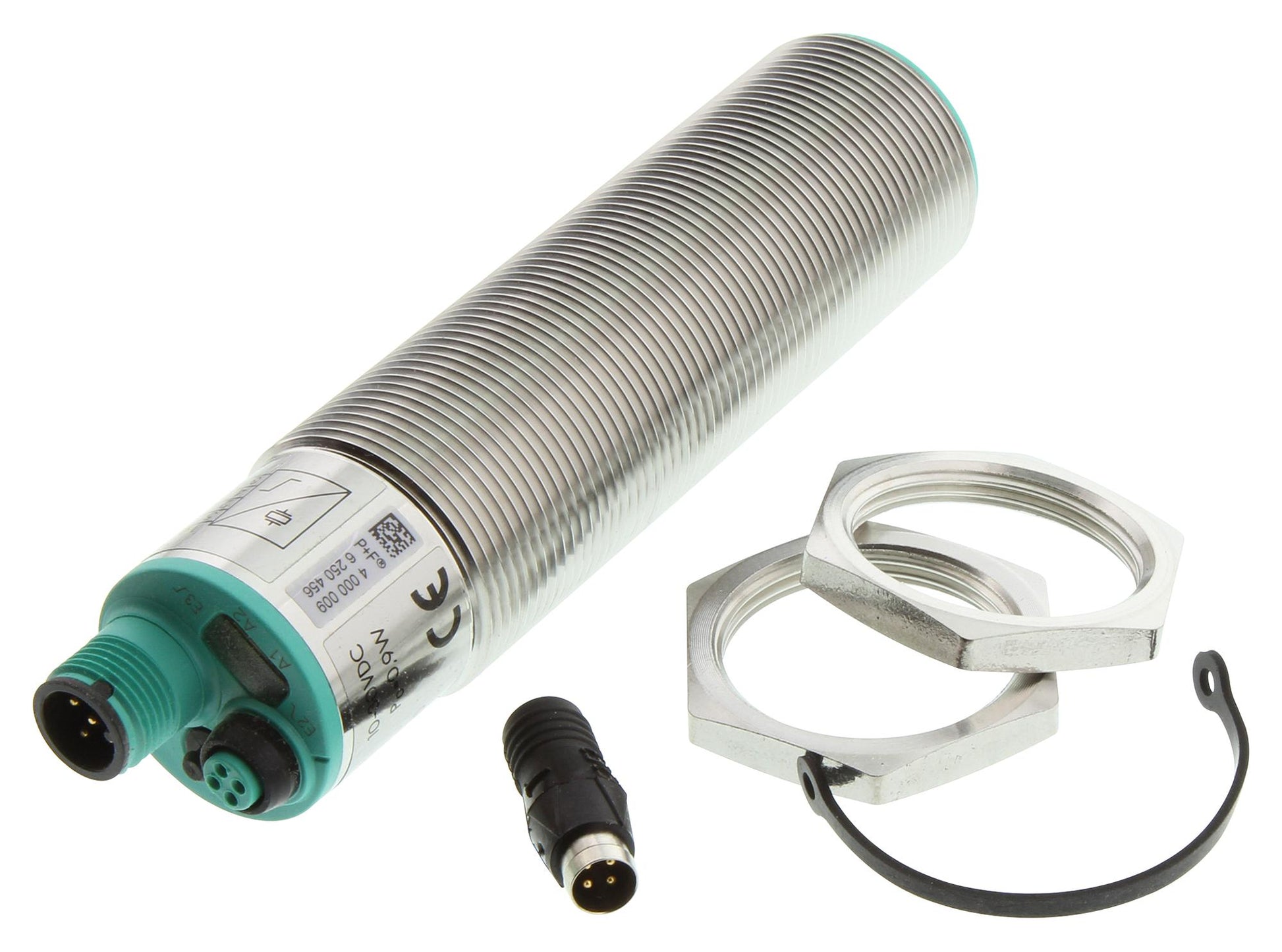

Pepperl+Fuchs Sensor UC2000-30GM-IUR2-V15 Ultrasonic Sensor

Description:

UC200030GMIUR2V15 ULTRASONIC SENSOR 80-2000 MM SENSING RANGE 12-2000 MM ADJUSTMENT RANGE 0-80 MM DEAD BAND 10-30 VDC 4-20 MA OUTPUT 0-10 V OUTPUT CONNECTOR PLUG M12 X 1 5-PIN SUGGESTED REPLACEMENT FOR UC2000-30GM-IU-V1 (104093) The Pepperl+Fuchs UC2000-30GM-IUR2-V15 is a versatile ultrasonic sensor designed for precise distance measurement and object detection in various industrial applications. Utilizing ultrasonic waves, it provides accurate detection over a range of up to 2 meters (6.56 feet), making it ideal for applications such as level measurement, object presence detection, and position monitoring. The sensor features a compact design with a cylindrical housing, ensuring easy installation in tight spaces. Its robust construction, combined with an IP67 rating, ensures reliable performance even in harsh environmental conditions.

Technical Specifications:

• Model Number: UC2000-30GM-IUR2-V15
• Type: Ultrasonic sensor
• Sensing Range: 0.1 to 2 meters (0.33 to 6.56 feet)
• Measurement Principle: Ultrasonic wave reflection
• Output Type: PNP/NPN, selectable via dip switch
• Response Time: 50 ms
• Frequency: 200 kHz
• Supply Voltage: 10 to 30 V DC
• Current Consumption: ≤ 30 mA
• Output Current: ≤ 200 mA
• Protection Rating: IP67 (dustproof and waterproof)
• Housing Material: Plastic (PA6)
• Connection Type: M12 connector (4-pin)
• Operating Temperature Range: -25°C to +70°C (-13°F to 158°F)
• Mounting: Adjustable mounting bracket included
• Certifications: CE, cULus
