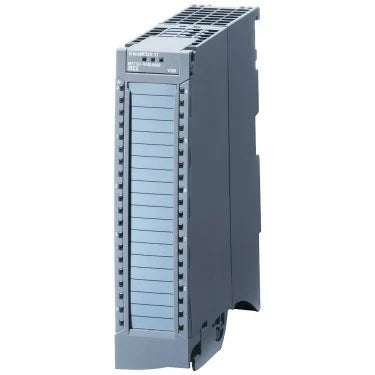

Siemens 6ES7531-7KF00-0AB0 SIMATIC S7-1500 6ES7 5317KF000AB0

Description:

The Siemens 6ES7531-7KF00-0AB0 is an analog input module for the SIMATIC S7-1500 PLC platform, designed to acquire and convert analog signals such as voltage, current, RTD, and thermocouple inputs into digital values for processing by the PLC. Installed in control cabinets and automation systems where precise measurement and monitoring of process variables are required. Maintenance teams and system integrators use this module for system expansion, retrofit, and upgrades to integrate analog field devices into Siemens automation systems.

Applications:

The Siemens 6ES7531-7KF00-0AB0 module is used in process control, manufacturing automation, temperature monitoring systems, water/wastewater plants, HVAC systems, and industrial machinery where accurate analog signal acquisition is critical. Siemens analog modules support integration of sensors such as temperature probes, pressure transmitters, and flow sensors, enabling precise monitoring and control in industrial environments.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6ES7531-7KF00-0AB0
• Product Type: Analog Input Module (PLC expansion)
• Series: SIMATIC S7-1500
• Number of Inputs: 8 analog inputs
• Input Types: Voltage, current, RTD, thermocouple
• Resolution: 16-bit
• Accuracy: ±0.3%
• Supply Voltage: 24 V DC
• Input Ranges:
• Voltage: ±10 V, ±2.5 V, ±500 mV
• Current: 0–20 mA, 4–20 mA, ±20 mA
• Supported Sensors: Pt100, Pt1000, Ni100, thermocouples (J, K, T, etc.)
• Dimensions: approx. 35 × 147 × 129 mm
• Mounting: PLC rack (backplane connection)
• Diagnostics: Integrated diagnostics and hardware interrupts
• Application: Analog signal acquisition for PLC systems

Common Replacements:

• Siemens 6ES7531-7KF02-0AB0 (newer/variant AI module)
• Siemens 6ES7531-7PF00-0AB0 (higher precision variant)
• Siemens ET200MP AI modules (distributed I/O equivalent)
