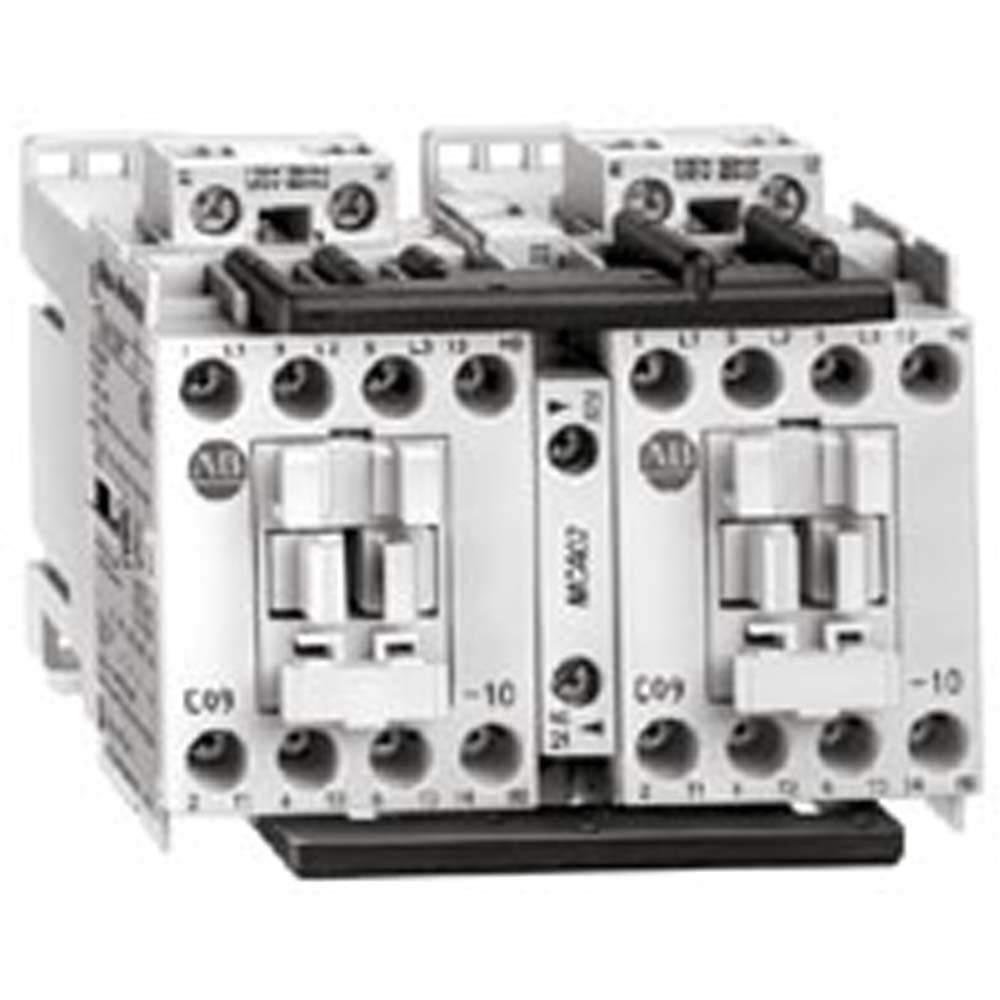

Allen-Bradley 104-C09D22 Reversing Contactor 120V 104C09D22

Description:

The Allen-Bradley 104-C09D22 is a reversing contactor assembly with a 120V AC coil designed for forward and reverse motor control in industrial automation systems. It integrates mechanically interlocked contactors to safely reverse three-phase motor rotation while preventing simultaneous energizing. Commonly installed in conveyor systems, hoists, lifts, packaging machinery, and material handling equipment, this reversing contactor supports reliable directional motor control within control panels and motor starter assemblies. Maintenance teams and system integrators use this unit for motor control panel builds, equipment retrofits, replacement of worn contactors, and maintaining reversing motor applications in industrial facilities.

Applications:

The 104-C09D22 reversing contactor is used to control bidirectional operation of three-phase motors in applications such as conveyor lines, overhead cranes, winches, and automated machinery. It is widely applied in manufacturing plants, warehouses, and processing facilities where controlled forward and reverse motor operation is required.

Technical Specifications:

• Manufacturer Part Number (MPN): 104-C09D22
• Brand: Allen-Bradley
• Product Type: Reversing Contactor
• Number of Poles: 3-pole (mechanically interlocked pair)
• Rated Operational Current (AC-3): 9 A
• Rated Operational Voltage: Up to 690V AC
• Coil Voltage: 120V AC, 50/60 Hz
• Auxiliary Contacts: Integrated auxiliary contacts (model dependent)
• Mounting: DIN rail or panel mount
• Terminal Type: Screw terminals
• Operating Temperature: Industrial control panel environment

Common Replacements:

• Allen-Bradley 104-C12D22
• Allen-Bradley 100-C09D10
• Allen-Bradley 100-C12D10
