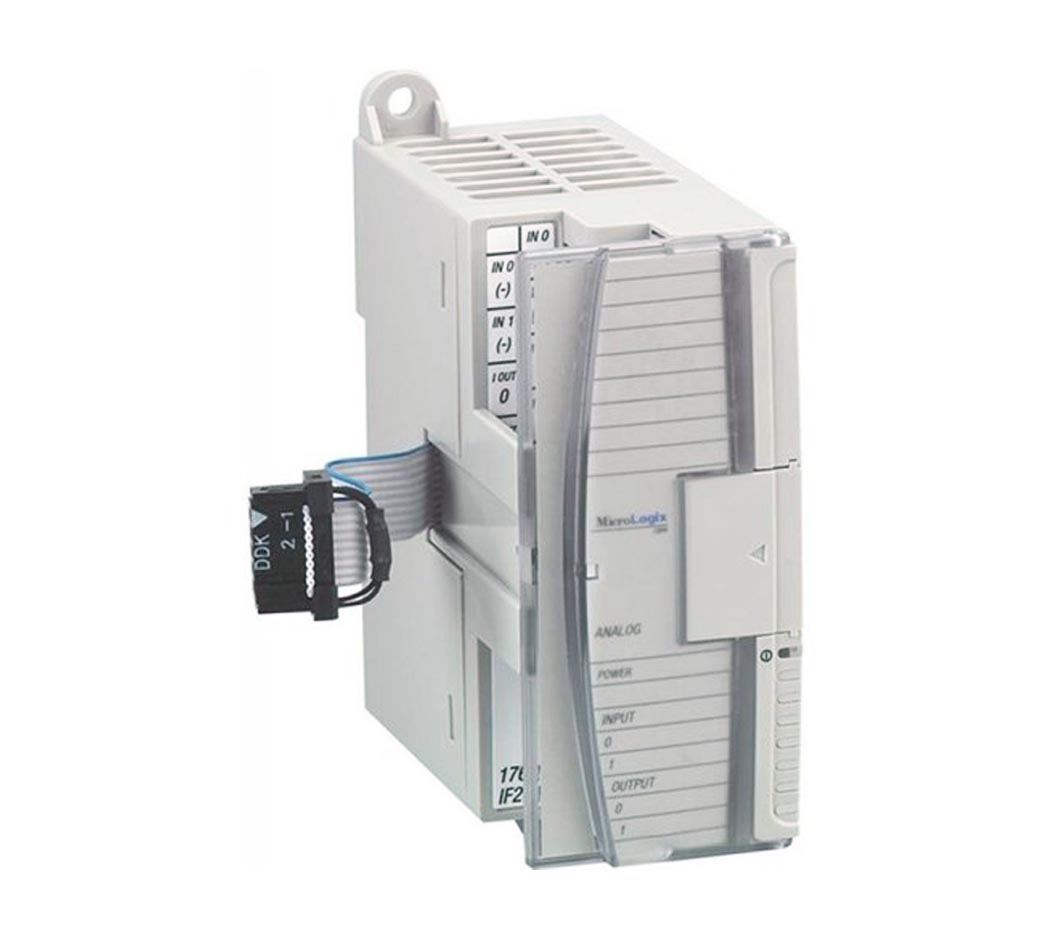

Allen-Bradley 1762-IF20F2 1200 Analog I/O Module

Description:

The Allen-Bradley 1762-IF20F2 1200 Analog I/O Module is used in MicroLogix 1200 PLC systems to provide analog signal input and output capability for monitoring and controlling process variables. Commonly installed in industrial control panels, machine automation systems, and distributed I/O configurations where temperature, pressure, flow, or level signals must be measured and regulated. Maintenance teams and system integrators use this module for system expansions, retrofit upgrades, replacement of failed analog modules, and enhancement of process control performance.

Applications:

The Allen-Bradley 1762-IF20F2 analog I/O module is commonly used in manufacturing production lines, water and wastewater treatment facilities, HVAC control systems, batching and mixing operations, and material handling equipment where precise analog signal processing improves system stability, closed-loop control accuracy, and overall operational efficiency.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Model: 1762-IF20F2
• Product Type: Analog I/O Module
• Series: MicroLogix 1200 Expansion Module
• I/O Type: Analog Input and Output (model dependent configuration)
• Input Signal Types: Voltage and/or current analog signals
• Output Signal Types: Voltage and/or current analog signals
• Resolution: High-resolution analog conversion
• Compatibility: MicroLogix 1200 PLC systems
• Interface: Expansion I/O connection to MicroLogix base unit
• Mounting Type: DIN rail or panel mount
• Supply Voltage: Powered through controller expansion bus
• Application Category: Industrial analog signal acquisition and control
• Operating Temperature Range: Industrial-rated environment

Common Replacements:

• Allen-Bradley 1762-IF4 Analog Input Module
• Allen-Bradley 1762-OF4 Analog Output Module
• Allen-Bradley 1769-IF8 CompactLogix Analog Input Module
