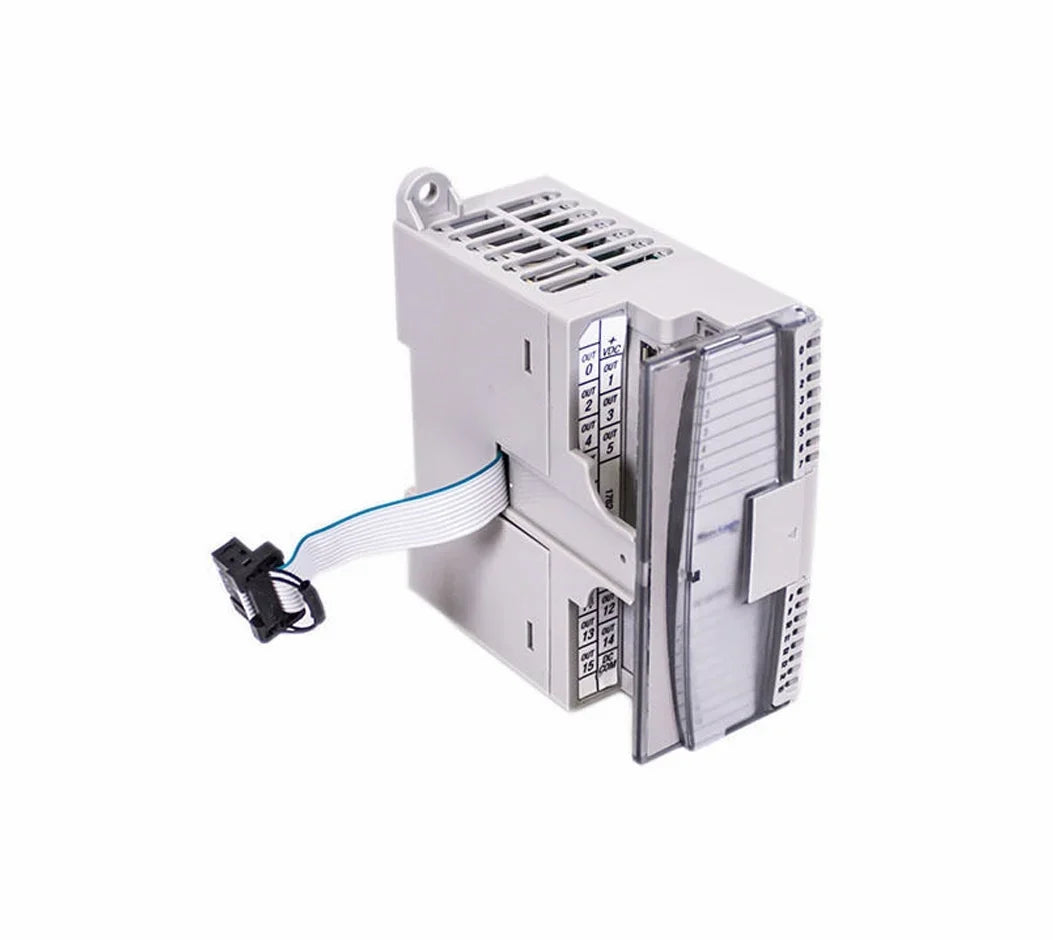

Allen-Bradley 1762-OB16 16-PT. 224VDC SOURCE Output Module 1762OB16

Description:

The Allen-Bradley 1762-OB16 16-Point 24 VDC Source Output Module is used in industrial automation systems to provide discrete sourcing digital outputs for controlling field devices such as lights, relays, solenoids, and actuators. Commonly installed in MicroLogix and SLC-500 PLC racks and control cabinets where reliable positive-switching outputs are required for machine control and signal actuation. Maintenance teams and system integrators use this output module for I/O expansions, retrofit upgrades, replacement of failed output modules, and enhancement of automation panel functionality.

Applications:

The Allen-Bradley 1762-OB16 output module is commonly used in industrial environments including manufacturing production lines, conveyor systems, packaging machinery, water and wastewater facilities, HVAC control panels, and material handling systems where dependable sourced discrete outputs support actuation of external field devices under PLC control.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Model: 1762-OB16
• Product Type: 16-Point Source Digital Output Module
• Output Channels: 16 discrete sourcing outputs
• Output Type: Sourcing digital outputs (positive switching)
• Load Voltage: 24 V DC load supply to field devices
• Compatibility: MicroLogix and SLC-500 series PLC systems
• Interface: Backplane connection to PLC rack
• Mounting Type: Rack or panel mounted module
• Function: Provides discrete output control for actuators and indicators
• Application Category: Discrete output signaling in automation systems
• Operating Temperature Range: Industrial-rated conditions
• Protection Rating: Installed within control or PLC enclosure

Common Replacements:

• Allen-Bradley 1762-OB8 8-Point Output Module
• Allen-Bradley 1734-OB16E POINT I/O Output Module
• Allen-Bradley 1756-OB16I ControlLogix Digital Output Module
