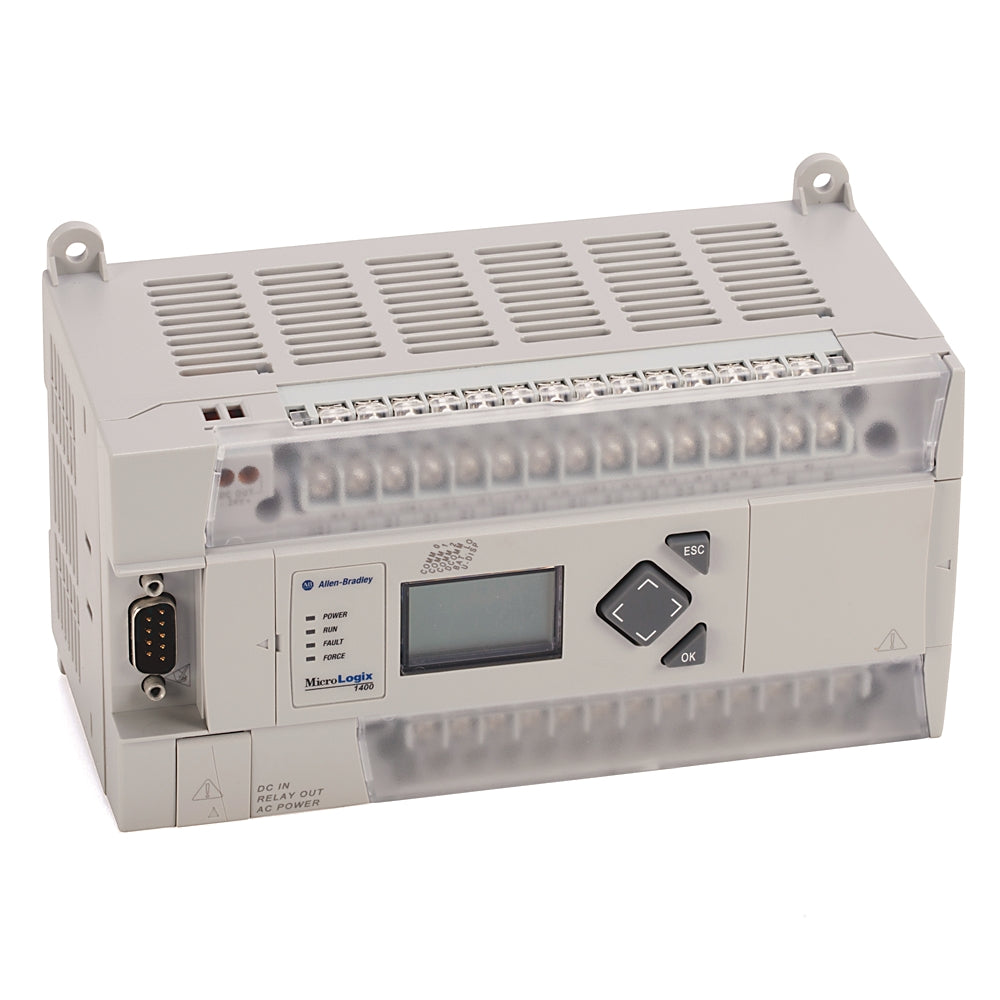

Allen-Bradley 1766-L32BXBA MicroLogix 1400 1766L32BXBA

Description:

1766L32BXBA PLC MODULE 12 DIGITAL FAST 24 VDC INPUTS 8 DIGITAL 24 VDC INPUTS 6 RELAY OUTPUTS 3 FAST 24 VDC OUTPUTS 3 NORMAL 24 VDC OUTPUTS 4 ANALOG MICROLOGIX 1400 The Allen-Bradley 1766-L32BXBA Series C is a programmable logic controller (PLC) from the MicroLogix™ 1400 series. It is designed to deliver robust control capabilities for small to medium-sized automation systems. This model features a built-in I/O configuration, which includes both digital and analog inputs and outputs, as well as communication ports for network integration. The 1766-L32BXBA offers expanded functionality and flexibility with an integrated display for real-time status monitoring and programming. Its compact form factor and advanced features make it suitable for a wide range of industrial applications where space and performance are critical.

Technical Specifications:

• Model Number: 1766-L32BXBA
• Series: C
• Type: Programmable Logic Controller (PLC)
• CPU Type: MicroLogix™ 1400
• I/O Configuration:
• Digital Inputs: 16 (configurable for sourcing or sinking)
• Digital Outputs: 16 (transistor outputs)
• Analog Inputs: 4 (0-10V or 4-20mA)
• Analog Outputs: 2 (0-10V or 4-20mA)
• Memory:
• User Memory: 32 KB
• Data Memory: 16 KB
• Communication Ports:
• Serial Ports: 1 RS-232/RS-485 port for programming and communication
• Ethernet Port: 1 port for network communication
• Display: Integrated LCD for real-time status and diagnostics
• Power Supply: Typically 24V DC
• Mounting Type: DIN Rail mount
• Operating Temperature Range: 0°C to +60°C (32°F to 140°F)
• Protection Class: IP20 (Protection against solid objects larger than 12 mm)
• Compliance: Meets relevant safety and performance standards such as UL, CE, and cULus
