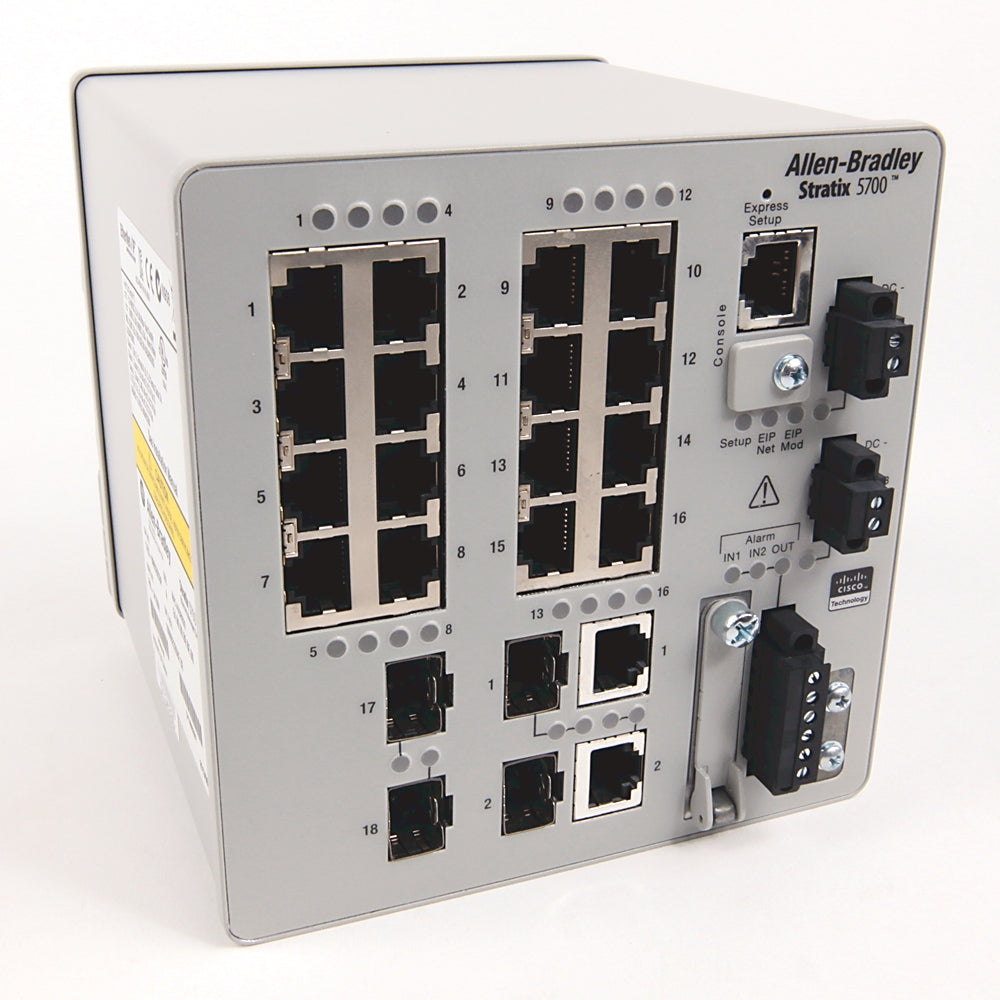

ALLEN-BRADLEY 1783-BMS20CGP STRATIX 5700 MANAGED ETHERNET SWITCH 1783BMS20CGP

Description:

The Allen-Bradley 1783-BMS20CGP Stratix 5700 Managed Ethernet Switch is used in industrial automation systems for network communication and device connectivity within control systems. Commonly installed in control panels, manufacturing lines, and industrial networks requiring managed switching and reliable data transmission. Maintenance teams and system integrators use this part for repair, retrofit, expansion, and replacement to maintain stable and secure industrial network performance.

Applications:

The Allen-Bradley 1783-BMS20CGP managed Ethernet switch is used in industrial environments where reliable and secure network communication is critical. It is commonly applied in manufacturing lines for PLC and HMI connectivity, process control systems for real-time data exchange, packaging and assembly machines for coordinated operations, and plant-wide networks to ensure seamless communication between automation devices.

Technical Specifications:

• Brand: Allen-Bradley
• Part Number: 1783-BMS20CGP
• Product Type: Managed Ethernet Switch
• Series: Stratix 5700
• Total Ports: 20 ports
• Copper Ports: 16 x 10/100/1000 Mbps RJ45
• Uplink Ports: 4 x Combo Gigabit (SFP or RJ45)
• Power Supply: Dual input, 18–60 VDC
• Network Management: Managed (Layer 2 switching features)
• Protocol Support: EtherNet/IP, VLAN, QoS, IGMP Snooping
• Mounting Type: DIN rail or panel mount
• Operating Temperature: 0°C to +60°C
• Enclosure Type: Industrial metal housing
• Protection Rating: IP30

Common Replacements:

• Allen-Bradley 1783-BMS20CL Stratix 5700 Switch
• Allen-Bradley 1783-BMS10CGP Stratix 5700 Switch
• Cisco IE-2000 Managed Ethernet Switch
