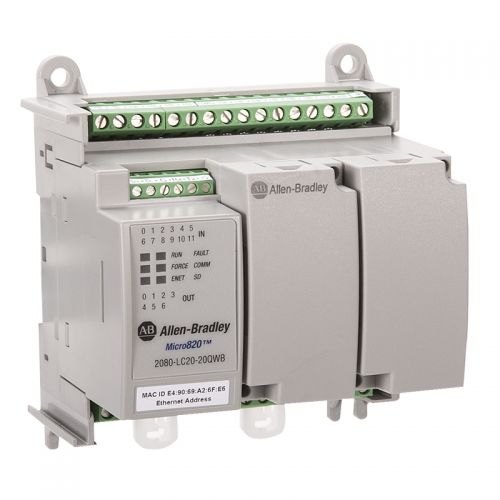

Allen-Bradley 2080-LC20-20QBBR 20 I/O ENet/IP Controller

Description:

2080LC2020QBBR CONTROLLER 12-24VDC INPUTS 4 CONFIGURABLE ANALOG INPUT WITH THERMISTOR VOLTAGE REFERENCE OUT 7 24VDC OUTPUT 1 ANALOG OUTPUT EMBEDDED ETHERNET PORT EMBEDDED RTC MICROSD CARD SUPPORT 2 PLUG-IN SLOTS WITH RTB TERMINALS The Allen-Bradley 2080-LC20-20QBBR is a compact, programmable logic controller (PLC) designed for small-scale automation tasks. It features a built-in, 20-point I/O configuration with 12 digital inputs and 8 digital outputs, making it ideal for controlling simple machinery or processes. This model includes a communications port for programming and monitoring, and supports expansion modules to adapt to various applications. Its compact design and robust performance make it suitable for space-constrained environments.

Technical Specifications:

• Power Supply: 24V DC
• Digital Inputs: 12 (24V DC)
• Digital Outputs: 8 (Relay, 24V DC)
• Communication Ports: 1 (USB)
• Program Memory: 16 KB
• Data Memory: 4 KB
• I/O Expansion Capability: Yes (via expansion modules)
• Operating Temperature Range: 0 to 55°C (32 to 131°F)
• Dimensions (H x W x D): 90 mm x 150 mm x 72 mm (3.54 in x 5.91 in x 2.83 in)
• Mounting Type: DIN Rail
