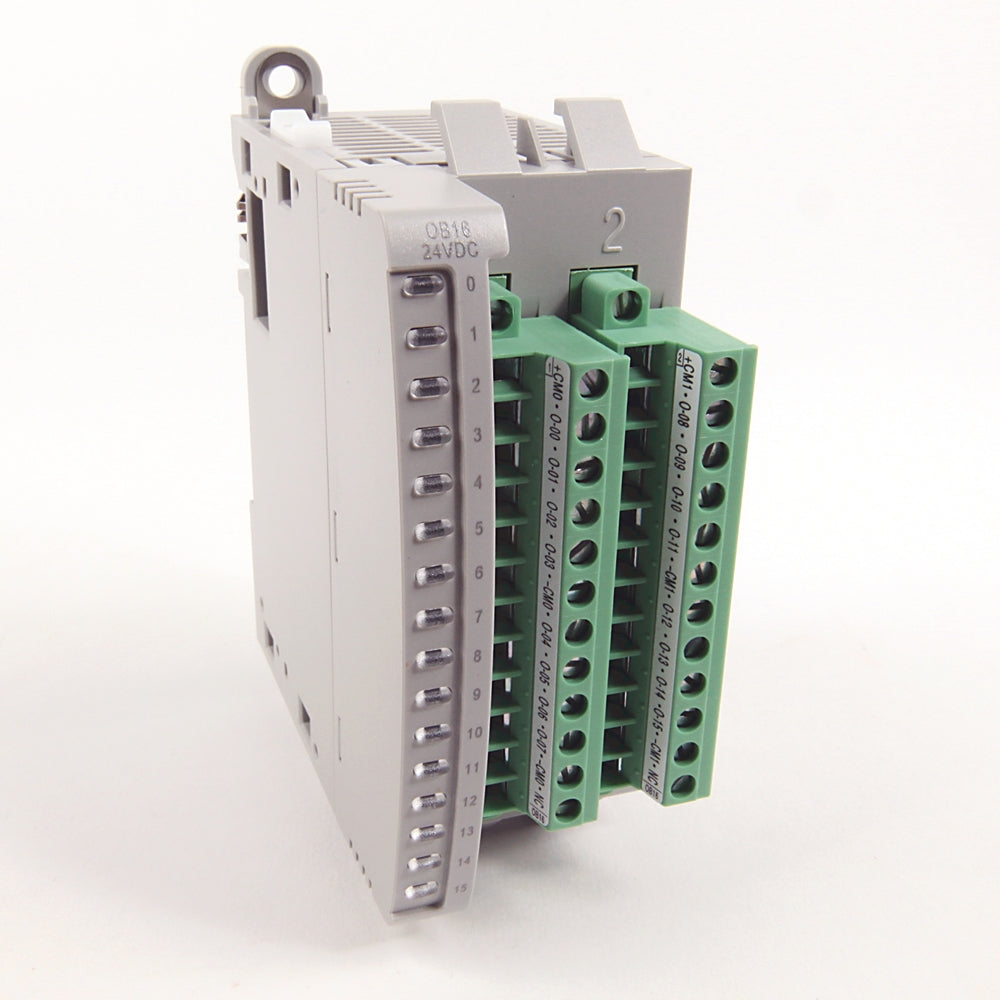

Allen-Bradley 2085-OB16 16 Point Source Output Module 2085OB16

Description:

2085OB16 MICRO800 OUTPUT MODULE DIGITAL 16 POINT 12/24 VDC SOURCE MOUNTABLE The Allen-Bradley 2085-OB16 is a compact and versatile output module designed for the Micro800 series of programmable logic controllers. This module provides 16 discrete output channels capable of switching 24V DC loads. It is designed for reliable operation in space-constrained environments, making it ideal for a variety of automation applications where precision and efficiency are required. The 2085-OB16 ensures robust performance with its high-quality construction and ease of integration into Micro800 systems.

Technical Specifications:

• Number of Outputs: 16 channels
• Output Type: Sourcing
• Output Voltage Range: 24V DC
• Output Current: 0.5 A per channel
• Isolation: 500V AC between output and backplane
• Response Time:
• On-State: 1 ms max
• Off-State: 1 ms max
• Power Requirements:
• 160 mA at 24V DC (from backplane)
• 0.5 W power dissipation
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -20 to 85 °C (-4 to 185 °F)
• Dimensions: 3.5 x 2.9 x 3.1 in (89 x 73 x 79 mm)
• Weight: 0.3 kg (0.66 lbs)
• Certifications: UL, CE, and cULus certified
• Application: Suitable for controlling digital output devices in a Micro800 PLC system, including relays, actuators, and other field devices
