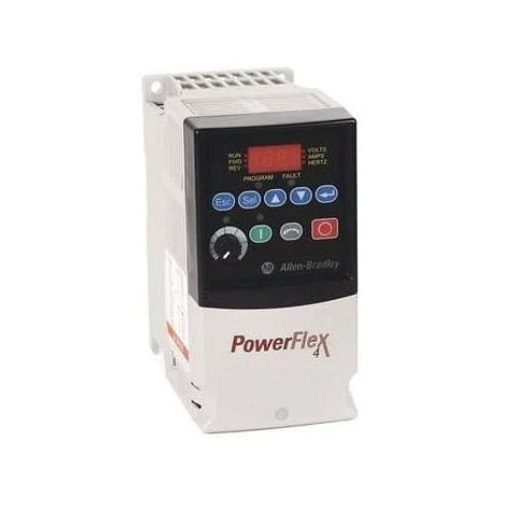

Allen Bradley 22A-A3P6N113 Powerflex 4 AC Drive 22AA3P6N113

Description:

The Allen Bradley 22A-A3P6N113 PowerFlex 4 AC Drive is a variable frequency drive used in industrial motor control systems for precise speed and torque regulation. Commonly installed in small conveyors, pumps, fans, and light-duty machinery to control three-phase AC motors using single-phase input power. Maintenance teams, OEMs, and system integrators use this drive for system control, retrofit, or replacement of compact motor drives.

Applications:

The Allen Bradley 22A-A3P6N113 is designed for light industrial and commercial applications requiring reliable and cost-effective motor speed control. It is widely used in HVAC systems, packaging machines, small automation systems, and workshop equipment where compact design and ease of use are essential. With built-in keypad control and RS485 communication, it supports standalone operation and integration into basic automation systems while maintaining energy efficiency and stable performance.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 22A-A3P6N113
• Product Type: Variable Frequency Drive (VFD)
• Series: PowerFlex 4
• Power Rating: 0.75 kW (1 HP)
• Input Voltage: 200–240V AC, single-phase
• Output Voltage: 0–230V AC, 3-phase
• Output Current: 3.6 A
• Input Current: 9.2 A
• Frequency Range: 0–240 Hz
• Control Method: V/Hz control
• Communication: RS485 (DSI / Modbus RTU support)
• Enclosure Rating: IP20 / Open type
• Mounting: Panel mount (Frame A)
• User Interface: Integrated keypad with LED display
• Filter: Internal EMC filter
• Brake IGBT: Not included
• Lifecycle Status: Discontinued (June 2025)

Common Replacements:

• Allen-Bradley 22A-A3P6N113
• Allen-Bradley 22A-A4P5N114
• Allen-Bradley 22F-A1P6N113
