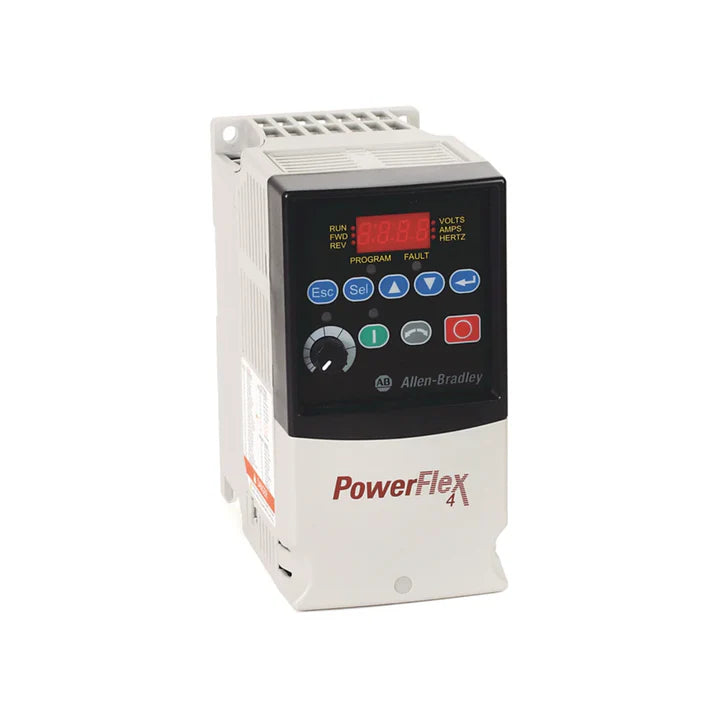

Allen Bradley 22A-A4P5N114 POWERFLEX 4 1 PHASE 240VAC AC DRIVE 22AA4P5N114

Description:

The Allen Bradley 22A-A4P5N114 PowerFlex 4 AC Drive is a variable frequency drive used in industrial motor control systems for precise speed and torque regulation. Commonly installed in small conveyors, pumps, fans, and light-duty machinery to control three-phase motors using single-phase input power. Maintenance teams, OEMs, and system integrators use this drive for system control, retrofit, or replacement of compact motor drives.

Applications:

The Allen Bradley 22A-A4P5N114 is designed for light industrial and commercial applications requiring reliable and cost-effective motor speed control. It is widely used in HVAC systems, packaging machines, small automation systems, and workshop equipment where compact design and ease of use are important. With built-in keypad control and RS485 communication capability, it enables simple standalone operation or integration into basic automation systems while maintaining energy efficiency and operational stability.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 22A-A4P5N114
• Product Type: Variable Frequency Drive (VFD)
• Series: PowerFlex 4
• Power Rating: 0.75 kW (1 HP)
• Input Voltage: 200–240V AC, single-phase
• Output Current: 4.5 A
• Output Voltage: 0–230V AC, 3-phase
• Frequency: 50/60 Hz
• Control Method: V/Hz (scalar) and sensorless vector control
• Frequency Range: Up to 240 Hz output
• Communication: RS485 (built-in)
• Enclosure Rating: IP20 / NEMA Open type
• Mounting: Panel mount / DIN rail
• Keypad: Integrated LED display with control keys
• Overload Capacity: 150% for 60 seconds
• Lifecycle Status: Discontinued (June 2025)

Common Replacements:

• Allen Bradley 25B-A4P8N104
• Allen Bradley 25A-A2P5N114
• Schneider ATV12H075M2
