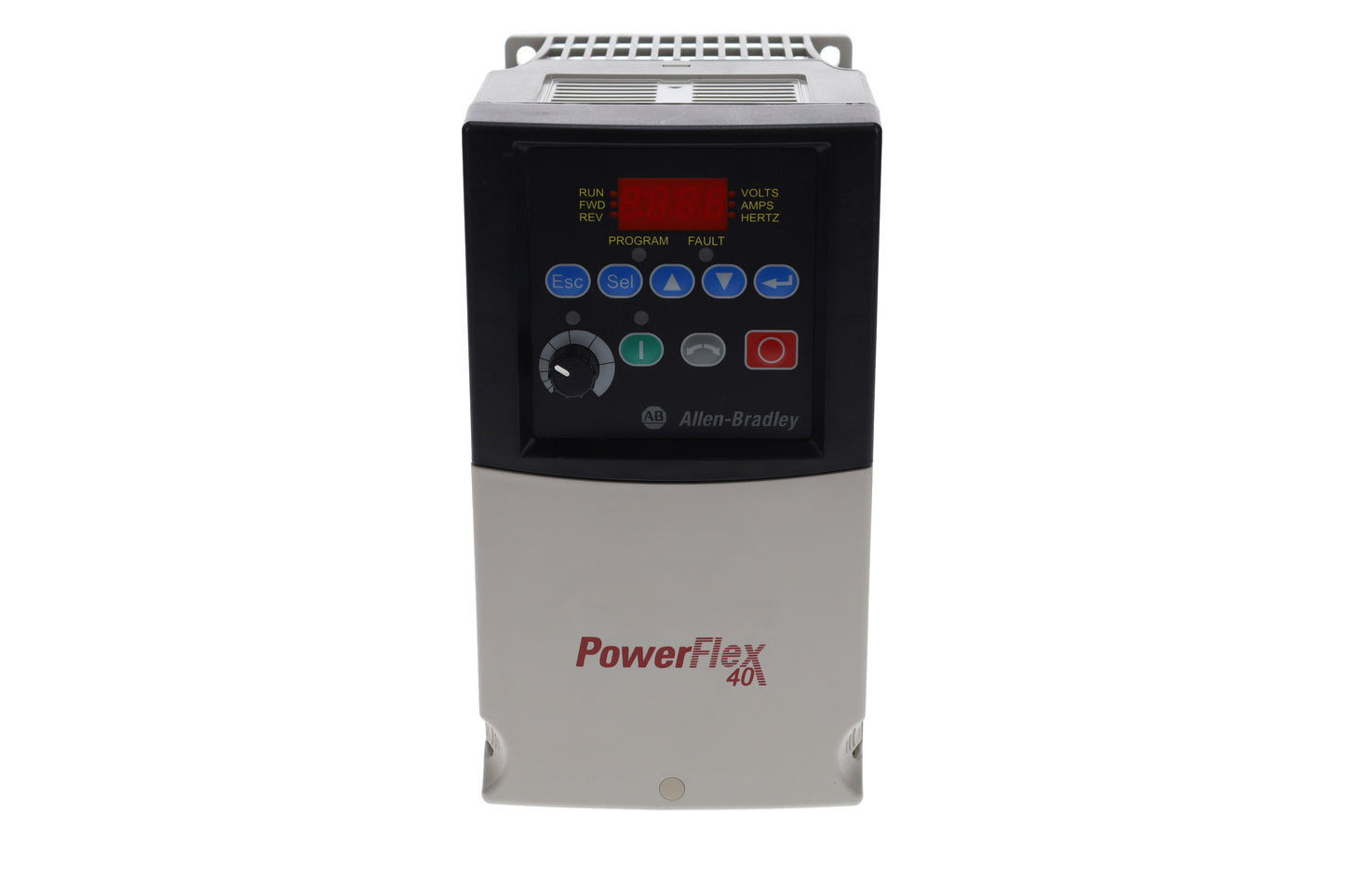

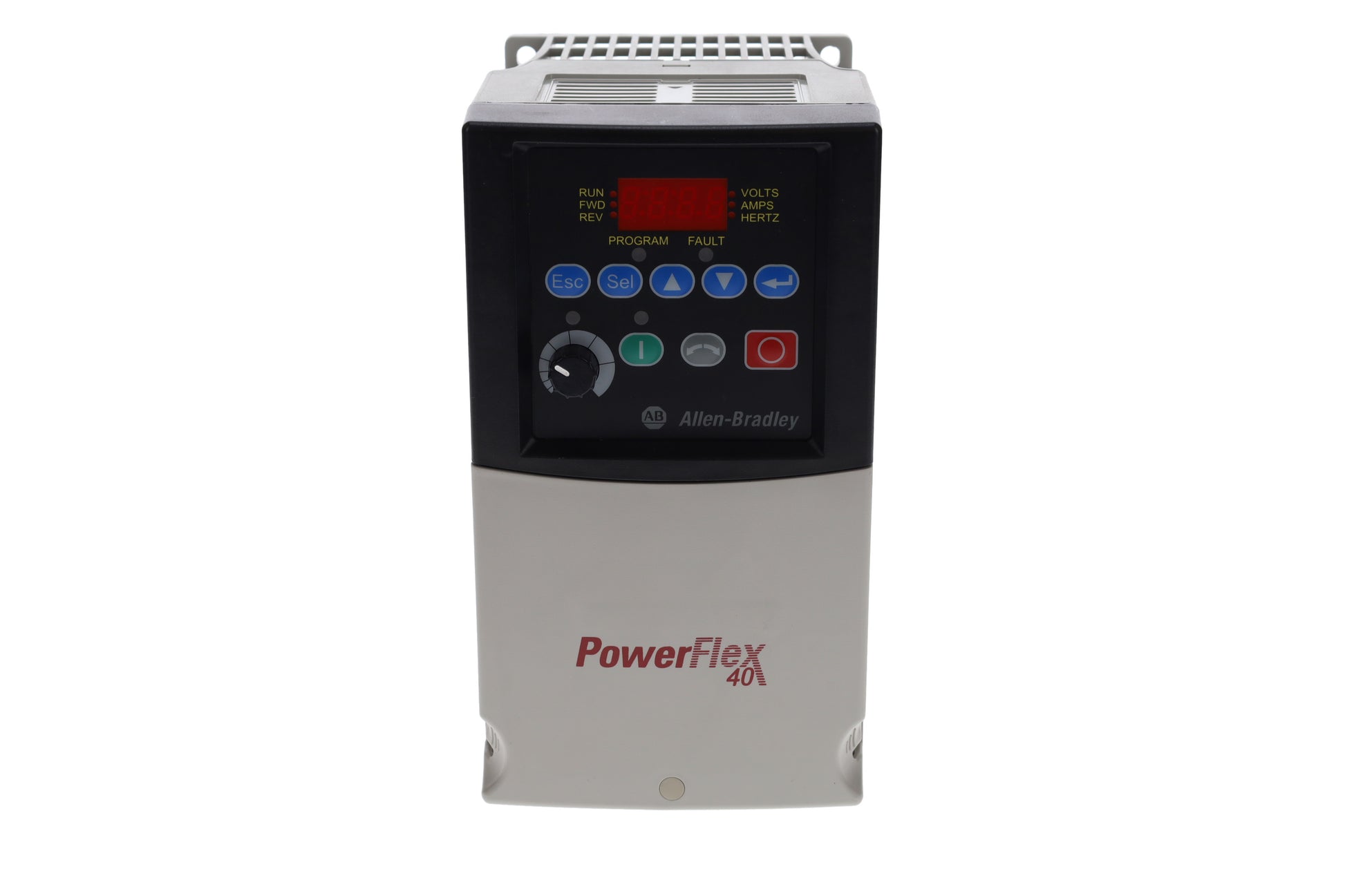

Allen Bradley 22B-D2P3N104 1.0 HP AC Drive Powerflex 40 W27 22BD2P3N104

Description:

The Allen Bradley 22B-D2P3N104 PowerFlex 40 AC Drive is a variable frequency drive used in industrial motor control systems for precise speed and torque regulation. Commonly installed in conveyors, pumps, fans, and light industrial machinery to control three-phase AC motors. Maintenance teams, OEMs, and system integrators use this drive for system control, retrofit, or replacement of compact motor drives.

Applications:

The Allen Bradley 22B-D2P3N104 is designed for light to medium-duty industrial applications requiring reliable motor speed control and energy efficiency. It is widely used in packaging machines, material handling systems, HVAC equipment, and small automation lines where consistent motor performance and compact drive design are essential. With flexible control options and built-in communication capability, it allows seamless integration into standalone or PLC-based control systems.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 22B-D2P3N104
• Product Type: Variable Frequency Drive (VFD)
• Series: PowerFlex 40
• Power Rating: 0.75 kW (1 HP)
• Input Voltage: 380–480V AC, 3-phase
• Output Current: 2.3 A
• Frequency: 50/60 Hz
• Control Method: V/Hz control, sensorless vector control
• Communication: RS485 (DSI / Modbus RTU support)
• Enclosure Rating: IP20 / Open type
• Mounting: Panel mount
• User Interface: Integral keypad with LED display
• Overload Capacity: 150% for 60 seconds
• Frame Size: Frame A

Common Replacements:

• Allen Bradley 25B-D2P3N104
• Allen Bradley 22F-D2P3N103
• Schneider ATV320U07N4B
