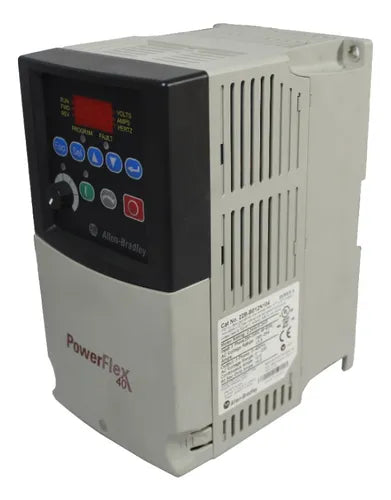

Allen Bradley 22B-B012N104 POWERFLEX40 3HP 40 AC Drive Catalog 22BB012N104

Description:

The Allen Bradley 22B-B012N104 PowerFlex 40 AC Drive is a variable frequency drive used in industrial motor control systems for precise speed and torque regulation. Commonly installed in conveyors, pumps, fans, and light industrial machinery to control three-phase AC motors. Maintenance teams, OEMs, and system integrators use this drive for system control, retrofit, or replacement of existing motor drives.

Applications:

The Allen Bradley 22B-B012N104 is designed for controlling three-phase AC motors in variable and constant torque applications across industrial environments. It is widely used in material handling systems, packaging equipment, HVAC systems, and general manufacturing processes where reliable motor speed control and energy efficiency are required. With flexible control modes and compact design, it enables easy integration into standalone or PLC-based automation systems.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 22B-B012N104
• Product Type: Variable Frequency Drive (VFD)
• Series: PowerFlex 40
• Power Rating: 2.2 kW (3 HP)
• Input Voltage: 380–480V AC, 3-phase
• Output Current: 12 A
• Frequency: 50/60 Hz
• Control Method: V/Hz control, sensorless vector control
• Enclosure Rating: IP20 / Open type
• User Interface: Integral keypad with LED display
• Communication: Optional DSI communication modules
• Mounting: Panel mount (Frame B)
• Lifecycle Status: Discontinued (June 2025)

Common Replacements:

• Allen Bradley 25B-B011N104
• Allen Bradley 22B-D012N104
• Allen Bradley 22D-B012N104
