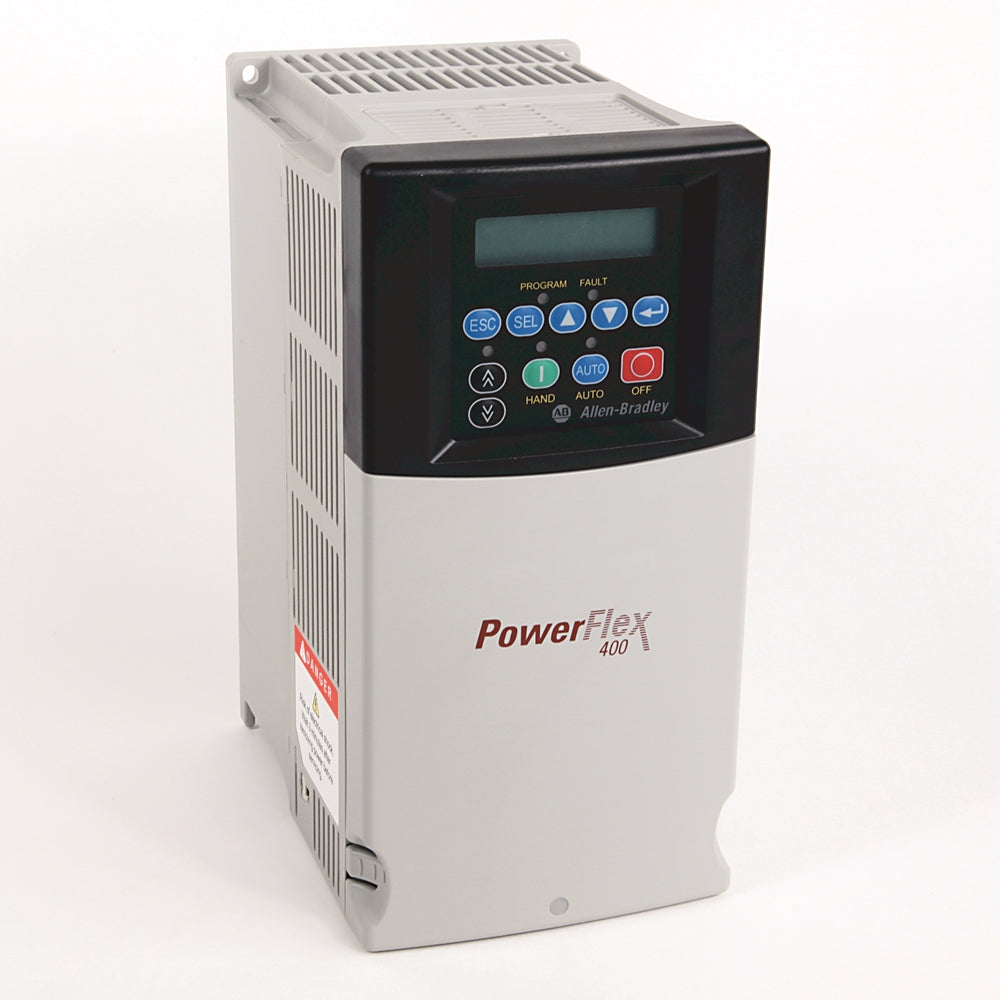

Allen-Bradley 22C-D010N103 22CD010N103

Description:

The Allen-Bradley 22C-D010N103 PowerFlex 400 AC Drive is used in industrial motor control systems to provide variable speed control and efficient operation for three-phase AC motors in light-to-medium power applications. Commonly installed in conveyor systems, pumps, fans, compressors, and automation machinery where adjustable motor speed improves process performance and energy efficiency. Maintenance teams and system integrators use this drive for system retrofits, replacement of failed VFDs, control panel upgrades, and new automation installations.

Applications:

The Allen-Bradley PowerFlex 400 22C-D010N103 drive is commonly used in industrial automation environments including material handling systems, manufacturing production lines, HVAC units, water and wastewater facilities, and processing equipment where precise motor speed regulation enhances performance, reduces wear, and improves overall system reliability.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Model: 22C-D010N103
• Product Type: AC Drive / Variable Frequency Drive
• Series: PowerFlex 400
• Input Voltage: 480 V AC, 3-phase
• Power Rating: Approximately 3 HP (model dependent)
• Rated Output Current: Industrial-rated current (model dependent)
• Frequency Range: 0–60 Hz (programmable)
• Control Methods: Advanced motor control with sensorless vector capability
• Enclosure/Frame: Industrial drive housing format
• Integrated Features: Built-in diagnostics and motor protection
• Communications: Optional network modules (EtherNet/IP, DeviceNet, etc.)
• Mounting Type: Panel or enclosure mounted drive unit
• Application Category: Industrial motor speed control and automation
• Operating Temperature Range: Industrial-rated conditions

Common Replacements:

• Allen-Bradley PowerFlex 525 22C-D010N103 Drive
• Rockwell PowerFlex 525 3 HP 480 V AC Drive
• ABB ACS355-03E-03A3-4 Inverter Drive
