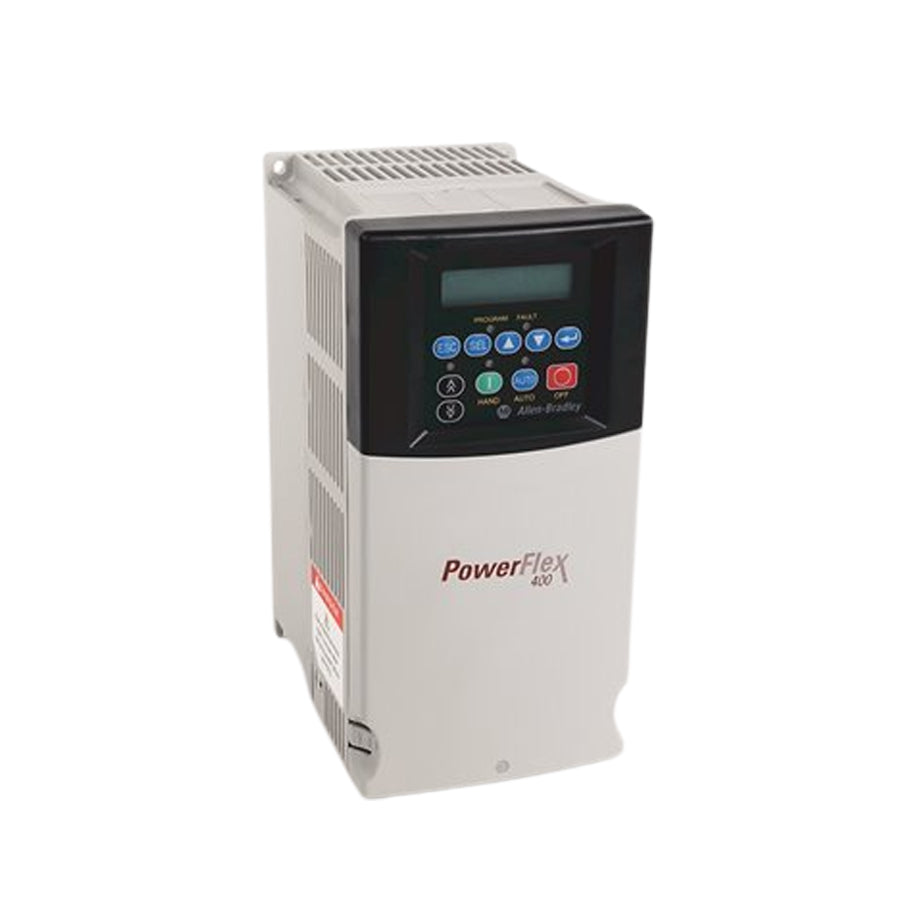

Allen Bradley 22C-D022N103 POWERFLEX 400 AC DRIVE 22CD022N103

Description:

The Allen Bradley 22C-D022N103 PowerFlex 400 AC Drive is a variable frequency drive designed for industrial motor control systems, specifically for fan and pump applications. Commonly installed in HVAC systems, water treatment facilities, and industrial pumping systems to regulate motor speed and energy consumption. Maintenance teams, OEMs, and system integrators use this drive for system control, retrofit, or replacement of existing motor drives.

Applications:

The Allen Bradley 22C-D022N103 is engineered for controlling three-phase AC motors in variable torque applications such as fans, blowers, and pumps. It is widely used in HVAC systems, cooling towers, water and wastewater plants, and industrial ventilation systems where efficient speed control and energy savings are critical. With built-in PID control and communication capability, it enables precise process control and seamless integration into automation systems for improved operational efficiency.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 22C-D022N103
• Product Type: Variable Frequency Drive (VFD)
• Series: PowerFlex 400
• Power Rating: 11 kW (15 HP)
• Input Voltage: 380–480V AC, 3-phase
• Output Current: 22 A
• Frequency: 50/60 Hz
• Control Method: V/Hz with PID control
• Communication: RS485 (Modbus RTU support)
• Enclosure Rating: IP20 / Open type
• Mounting: Panel mount (Frame C)
• Power Factor: 0.98
• Interface: Integrated keypad with LED display

Common Replacements:

• Allen-Bradley 22C-D030N103
• Allen-Bradley 22C-D017N103
• Allen-Bradley 22C-D045A103
