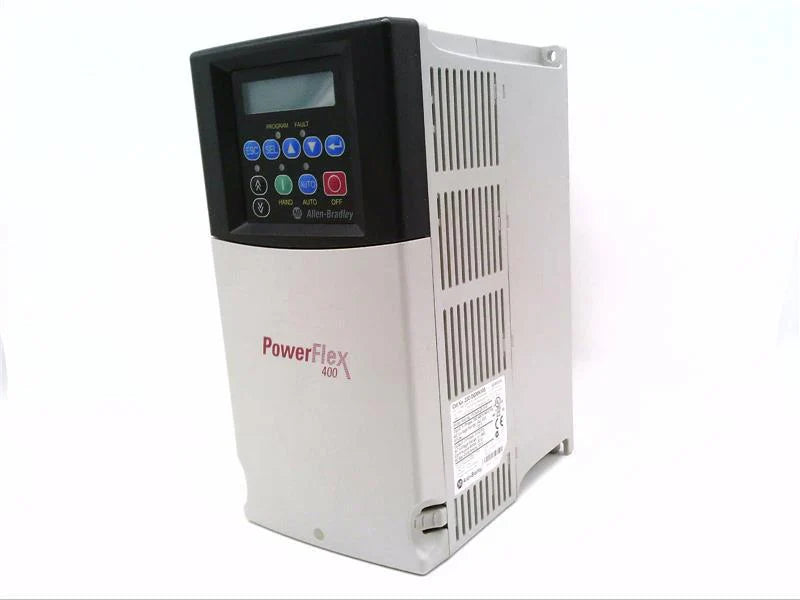

Allen Bradley 22C-D030N103 POWERFLEX 400 CATALOG AC Drive 22CD030N103

Description:

The Allen Bradley 22C-D030N103 PowerFlex 400 AC Drive is a variable frequency drive designed for industrial motor control systems, specifically for fan and pump applications. Commonly installed in HVAC systems, water treatment plants, and industrial pumping systems to regulate motor speed and energy consumption. Maintenance teams, OEMs, and system integrators use this drive for system control, retrofit, or replacement of existing motor drives.

Applications:

The Allen Bradley 22C-D030N103 is engineered for controlling three-phase AC motors in variable torque applications such as fans, blowers, and pumps. It is widely used in HVAC systems, cooling towers, water and wastewater facilities, and industrial ventilation systems where efficient speed control and energy savings are critical. With built-in PID control and RS485 communication capability, it enables precise process control and seamless integration into automation systems for improved operational efficiency.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 22C-D030N103
• Product Type: Variable Frequency Drive (VFD)
• Series: PowerFlex 400
• Power Rating: 15 kW (20 HP)
• Input Voltage: 380–480V AC, 3-phase
• Output Current: 30 A
• Frequency: 50–60 Hz
• Control Method: V/Hz control with PID functionality
• Communication: RS485 (Modbus RTU support)
• Enclosure Rating: IP20 / Open type
• Mounting: Panel mount (Frame C)
• User Interface: Integral keypad with LED display
• Power Factor: 0.98

Common Replacements:

• Allen Bradley 22C-D022N103
• Allen Bradley 22C-D045A103
• Allen Bradley 22C-D017N103
