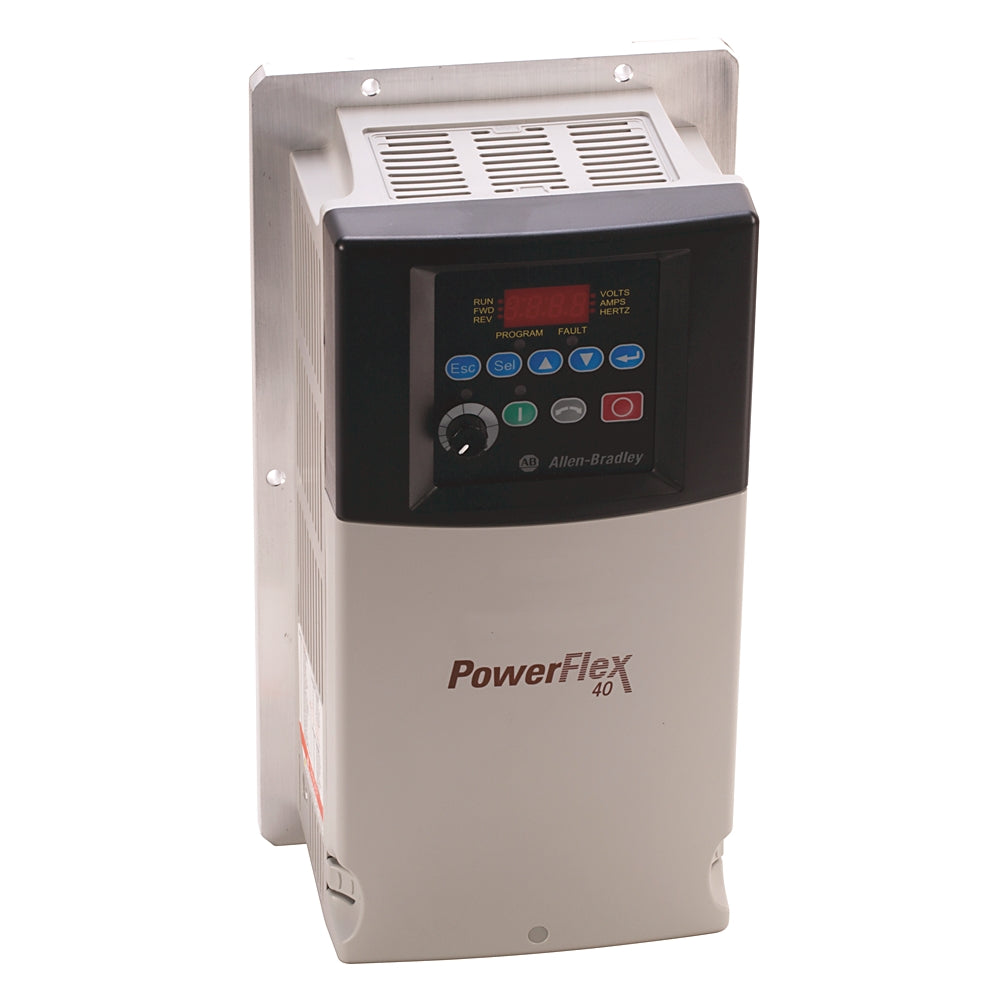

Allen Bradley 22D-D012N104 PowerFlex 40P Catalog 22D012N104

Description:

The Allen Bradley 22D-D012N104 PowerFlex 40P AC Drive is a variable frequency drive used in industrial motor control systems. Commonly installed in conveyor systems, pumps, fans, and material handling equipment to regulate motor speed and torque. Maintenance teams, OEMs, and system integrators use this drive for system control, retrofit, or replacement of existing motor drives.

Applications:

The Allen Bradley 22D-D012N104 is designed to provide precise speed and torque control for three-phase AC motors in industrial environments. It is widely used in manufacturing plants, water treatment facilities, HVAC systems, and automated production lines where energy efficiency and process control are critical. With integrated communication capabilities and flexible control options, it supports reliable operation in both standalone and networked automation systems.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 22D-D012N104
• Product Type: Variable Frequency Drive (VFD)
• Series: PowerFlex 40P
• Power Rating: 5.5 kW (7.5 HP)
• Input Voltage: 480V AC, 3-phase
• Input Frequency: 50/60 Hz
• Output Current: Approx. 12 A
• Enclosure Type: IP20 / Open type
• Mounting: Panel mount
• Frame Size: Frame C
• Communication: RS485 built-in
• Keypad: Integrated keypad with LED display
• Lifecycle Status: Discontinued (as of June 2025)

Common Replacements:

• Allen Bradley 25B-D013N104
• Allen Bradley 22D-D017N104
• Allen Bradley 22B-D012N104
