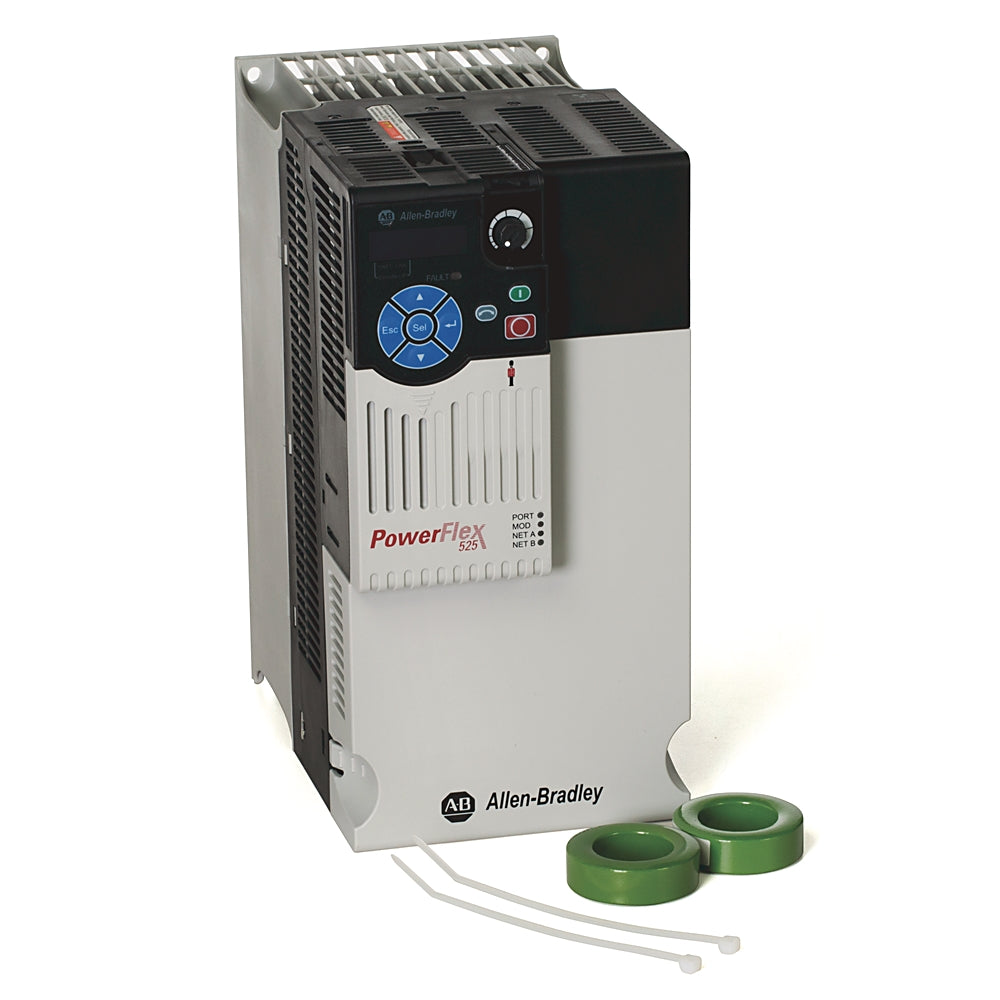

Allen-Bradley 25B-D030N114 Variable Frequency Drive 25BD030N114

Description:

The Allen-Bradley 25B-D030N114 Series A is a compact and efficient variable frequency drive (VFD) designed to control and optimize the performance of AC motors in various industrial applications. With a power rating of 3 horsepower (HP) and capable of handling a wide voltage range, this drive offers precise speed and torque control, enhancing operational efficiency and energy savings. The Series A model includes advanced features such as adjustable acceleration and deceleration times, programmable parameters, and a user-friendly interface for easy configuration and monitoring. Its robust construction and built-in protection features make it suitable for demanding environments where reliability and performance are critical.

Technical Specifications:

• Product Type: Variable Frequency Drive (VFD)
• Model: 25B-D030N114
• Series: A
• Power Rating: 3 HP
• Input Voltage Range: 200-240V AC, 3-phase
• Output Voltage: 0-240V AC
• Current Rating: 13.6 A
• Frequency Range: 0-400 Hz
• Control Type: Scalar (Volts/Hz) control
• Display: LED-based, with keypad for parameter programming
• Communication Ports: RS-232/RS-485 (optional)
• Cooling Method: Internal fan
• Enclosure Type: NEMA 1 (open type)
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
• Dimensions: 230 mm x 180 mm x 140 mm (9.1 in x 7.1 in x 5.5 in)
• Weight: Approx. 3.4 kg (7.5 lbs)
• Features: Adjustable acceleration/deceleration, motor overload protection, fault diagnostics
