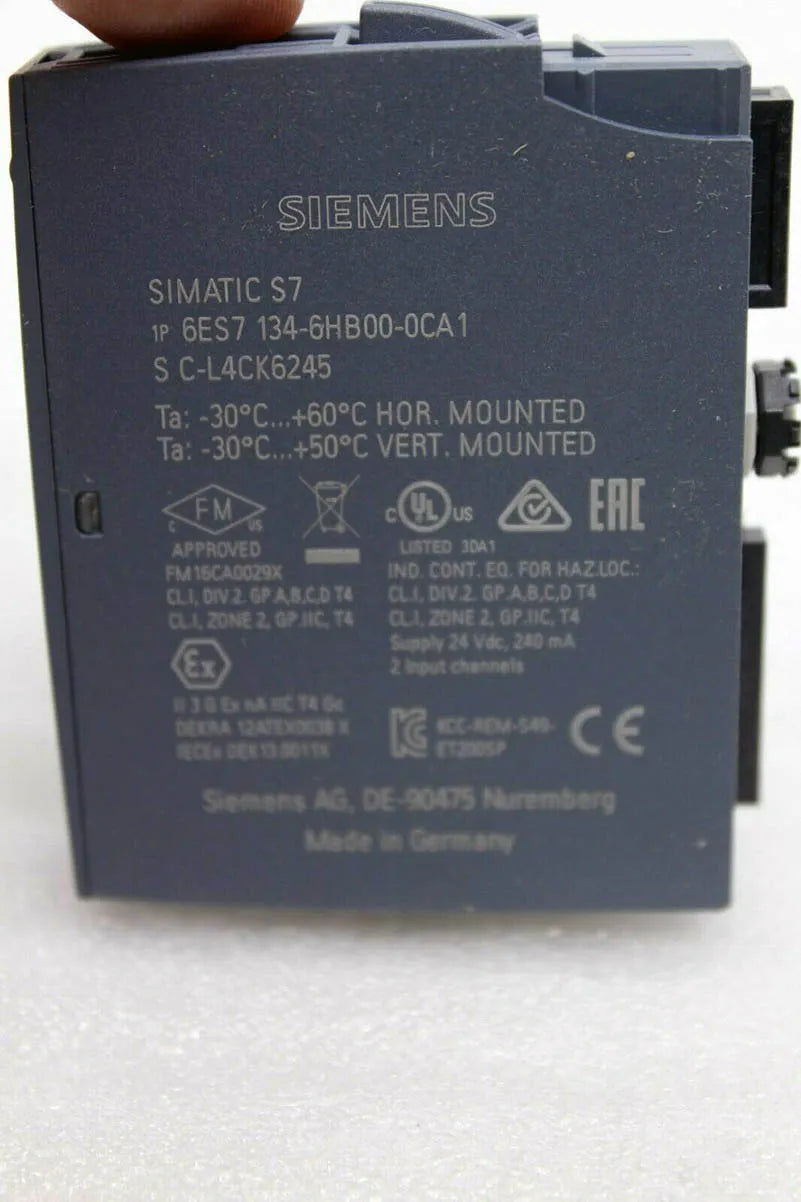

Siemens 6ES7134-6HB00-0CA1 Analog Input Module 6ES71346HB000CA1

Description:

6ES71346HB000CA1 INPUT MODULE ANALOG SIMATIC ET 200SP 2 ANALOG INPUT 4-WIRE HIGH FEAT CHANNEL DIAGNOSTICS 16 BIT The Siemens 6ES7134-6HB00-0CA1 is a high-performance analog input module designed for the S7-300 PLC series, offering precise and reliable measurement of analog signals in industrial automation systems. This module features 8 analog input channels with a 16-bit resolution, capable of measuring voltage (0-10V) and current (0/4-20mA) signals with high accuracy. It includes integrated diagnostics and LED indicators for real-time status monitoring and troubleshooting, ensuring optimal performance and ease of maintenance. The 6ES7134-6HB00-0CA1 is ideal for applications requiring accurate analog signal acquisition and seamless integration with Siemens S7-300 PLC systems.

Technical Specifications:

• Product Type: Analog Input Module
• Series: S7-300
• Catalog Number: 6ES7134-6HB00-0CA1
• Number of Inputs: 8
• Input Types:
• Voltage: 0-10V
• Current: 0/4-20mA
• Input Resolution: 16 bits
• Accuracy: ±0.1% of full scale
• Sampling Rate: 1 ms (typical)
• Isolation: 500V (channel-to-channel and channel-to-bus)
• Diagnostic Indicators: LEDs for input status
• Mounting Type: DIN rail
• Dimensions (W x H x D): Approximately 40 mm x 125 mm x 120 mm
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• Relative Humidity: 5% to 95%, non-condensing
