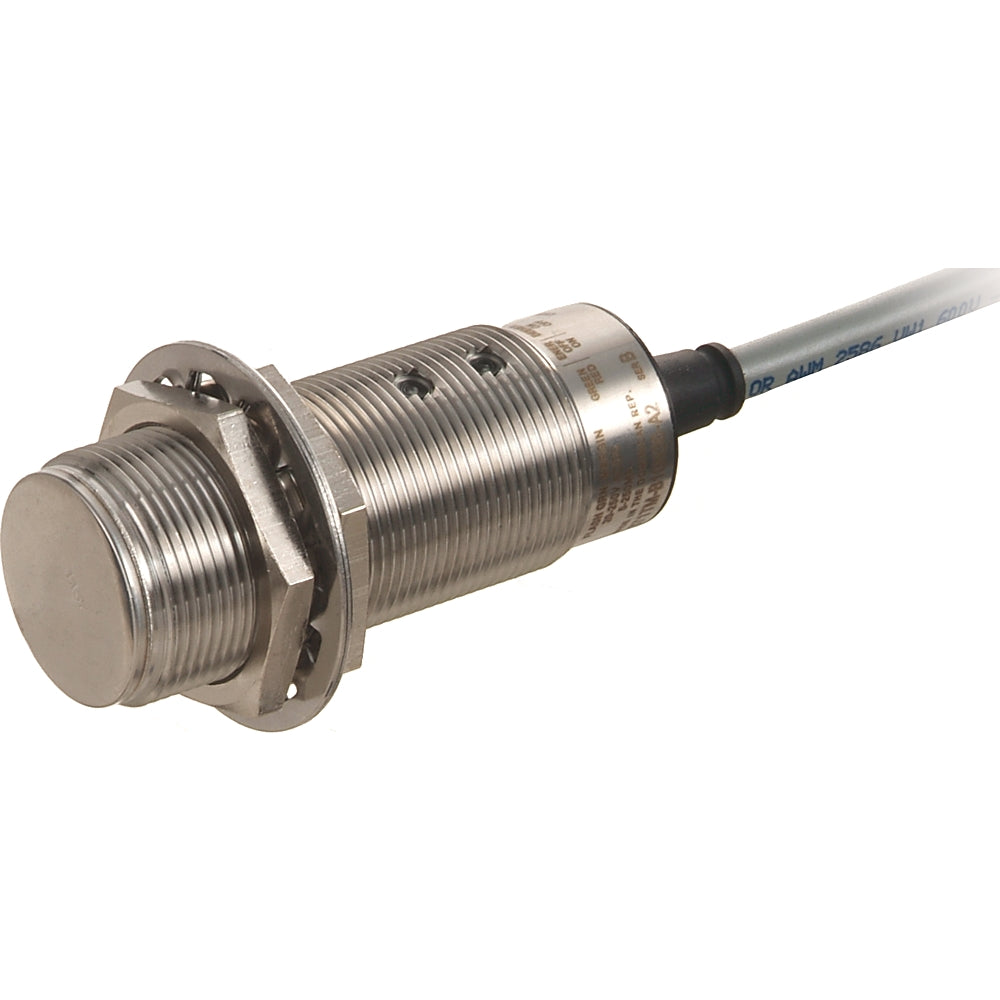

Allen-Bradley 871TM-B8C18-A2 Inductive Proximity Sensor, 18mm, DC, 3-Wire, Normally Open, 4-Pin Micro QD

Description:

The Allen-Bradley 871TM-B8C18-A2 is a rugged inductive proximity sensor designed for high-performance detection in harsh industrial environments. Built with a stainless steel 18mm tubular housing, this sensor offers an extended sensing range and is engineered for durability in washdown, impact-prone, or corrosive applications. Its flush mounting and quick-disconnect M12 connector provide flexible and efficient installation. With a 3-wire DC normally open output, the 871TM series delivers fast and accurate non-contact metal detection.

TECHNICAL SPECIFICATIONS:

Sensing Technology: Inductive
Sensing Distance: 8 mm
Output Type: Normally Open (N.O.)
Wiring Type: 3-Wire DC
Operating Voltage: 10–30 VDC
Connector: 4-Pin M12 Micro Quick Disconnect
Mounting Type: Flush
Housing Size: 18 mm diameter
Housing Material: Stainless Steel
Switching Frequency: Up to 2000 Hz
Enclosure Rating: IP67, IP69K
