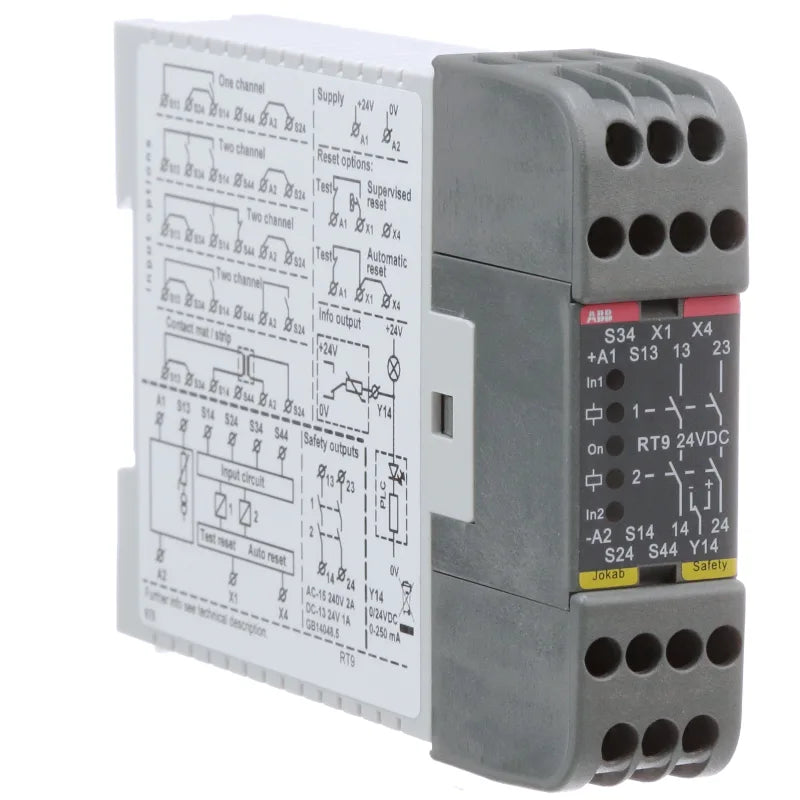

ABB 2TLA010029R0000 Safety Relay RT9 24VDC

DESCRIPTION
The ABB 2TLA010029R0000, also known as the Vital 1 Safety Controller, is a compact, solid-state safety relay system designed for monitoring multiple safety devices in series with minimal wiring. It operates at 24VDC and supports ABB’s Eden sensors and other safety components with pluggable terminals for easy installation and maintenance. The Vital 1 can monitor emergency stops, light curtains, safety switches, and safety mats, offering PL e / SIL3 level safety in accordance with ISO 13849-1 and IEC 62061.

TECHNICAL SPECIFICATIONS
Model Number: 2TLA010029R0000
Product Name: Vital 1
Input Voltage: 24 VDC
Power Consumption: <3W
Safety Outputs: 2 NO (redundant solid-state outputs)
Auxiliary Outputs: 1 NC or 1 NO (depending on wiring)
Response Time: ≤30 ms
Max Safety Level: PL e (ISO 13849-1), SIL 3 (IEC 62061)
Sensor Compatibility: ABB Eden, E-stop buttons, light curtains, and other dry-contact devices
Terminal Type: Pluggable screw terminals
Operating Temperature: -10°C to +55°C
Mounting: DIN rail
Housing: Compact plastic enclosure
Protection Rating: IP20
Dimensions: Approx. 22.5 mm (width) x 114.5 mm (height) x 99 mm (depth)
