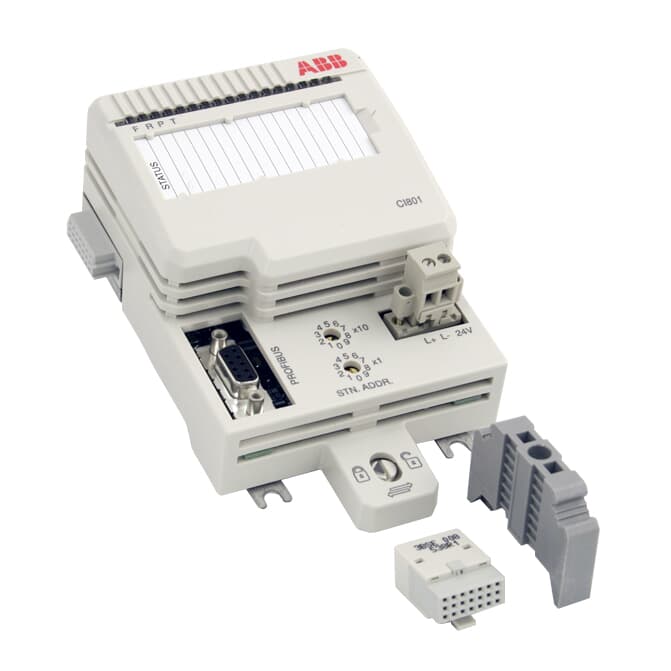

ABB 3BSE022366R1 Communication Interface Module 3BSE022366R1

Description:

3BSE022366R1 COMMUNICATION INTERFACE PROFIBUS FCI S800 0.2 AMP 125 VDC CI801 58.5(L) X 136(H) X 85.8(W) INCH INCLUDES / 1 POWER SUPPLY CONNECTOR / 1 TB807 MODULEBUS TERMINATOR FOR INTERCONNECTING FIELD DEVICES / TELEPHONE SETS / CELLULAR NETWORKS The 3BSE022366R1 is an advanced industrial module designed for integration within ABB’s control systems, specifically tailored for automation and process control applications. This module offers high reliability and precision in handling control and monitoring tasks, making it ideal for use in complex industrial environments. With its robust design and extensive functionality, the 3BSE022366R1 ensures seamless operation and integration into existing systems, enhancing the efficiency and effectiveness of control processes. It is engineered to meet rigorous industrial standards, ensuring long-term performance and operational excellence.

Technical Specifications:

• Type: I/O Module
• Model: 3BSE022366R1
• Functionality: Provides digital and analog I/O capabilities
• Input Channels:
• Digital Inputs: 16 channels
• Analog Inputs: 8 channels (current or voltage)
• Output Channels:
• Digital Outputs: 16 channels
• Analog Outputs: 4 channels (current or voltage)
• Communication Interface: Compatible with ABB’s 800xA or Freelance control systems
• Power Supply: 24 V DC
• Operating Temperature: 0°C to 55°C
• Dimensions: 200 mm x 150 mm x 70 mm (approximate)
• Weight: 1.0 kg (approximate)
• Protection Class: IP20
• Housing Material: Flame-Retardant Plastic
• Mounting Type: DIN Rail
• Certifications: CE, UL
