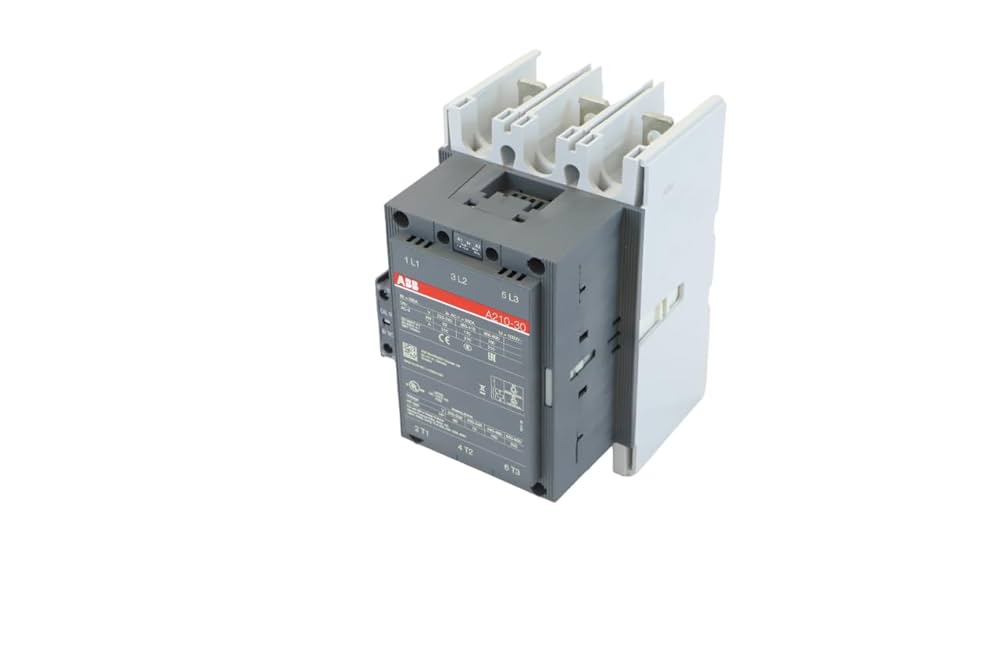

ABB A210-30-11 3-Phase Contactor AC24 110 220 380V

Description:

The ABB A210-30-11 is a heavy-duty, 3-pole AC non-reversing contactor designed for switching electric motors and other high-current loads. It includes three main normally open contacts and one auxiliary contact (1 NO + 1 NC). Built for industrial control applications, it supports high operational voltage and current ratings, making it suitable for demanding environments in automation and motor control systems.

TECHNICAL SPECIFICATIONS:

Manufacturer: ABB
Model Number: A210-30-11
Series: A Series
Main Poles: 3 NO
Auxiliary Contacts: 1 NO + 1 NC
Rated Operational Voltage (Ue): up to 690 V AC
Rated Insulation Voltage (Ui): 1000 V
Rated Current (AC-3): 300 A @ 440 V
Coil Voltage Options: 110–120 V AC (suffix –84), 220–240 V AC (suffix –80)
Control Circuit Type: AC operated
Coil Consumption: Pull-in ~1350 VA, Holding ~65 VA
Frequency: 50/60 Hz
Mounting Type: DIN-rail or panel mount
Terminal Capacity: Up to 240 mm² (main), 4 mm² (auxiliary)
Dimensions (W x H x D): approx. 140 x 227 x 180.5 mm
Weight: approx. 5.4 kg (11.9 lb)
