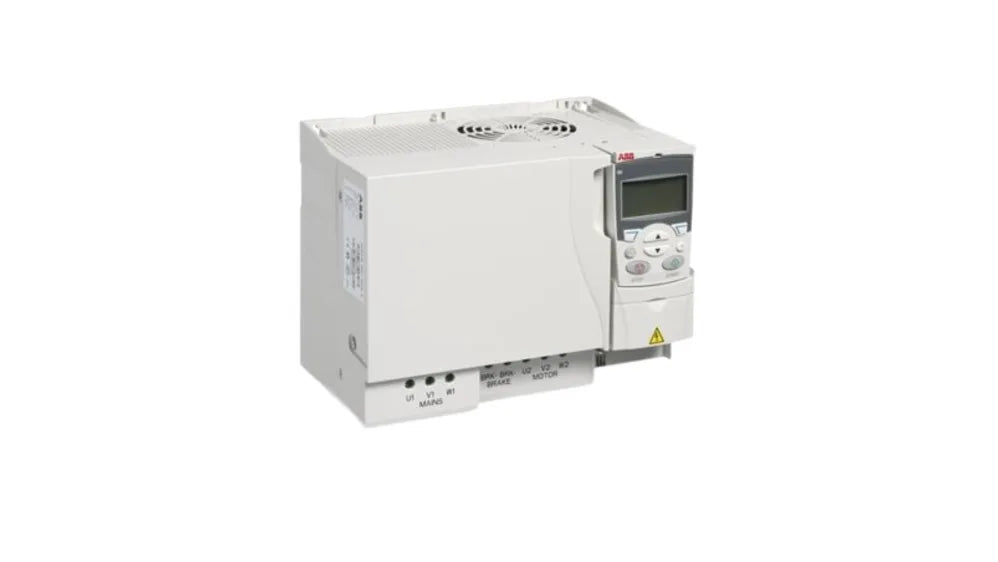

ABB ACS310-03E-34A1-4 ACS31003E34A14 Inverter

Description:

The ABB ACS310-03E-34A1-4 Inverter is used in industrial motor control systems to provide variable speed and efficient operation for three-phase AC motors in general-purpose automation applications. Commonly installed in conveyor systems, pump and fan applications, packaging machinery, mixers, and processing equipment where reliable motor speed regulation improves process control and performance. Maintenance teams and system integrators use this drive for system retrofits, replacement of failed VFDs, control panel upgrades, and new machine installations.

Applications:

The ABB ACS310-03E-34A1-4 is commonly used in industrial automation environments including material handling systems, water and wastewater facilities, HVAC units, manufacturing production lines, and processing equipment where precise motor speed control enhances efficiency, reduces mechanical wear, and stabilizes process performance.

Technical Specifications:

• Manufacturer: ABB
• Model: ACS310-03E-34A1-4
• Product Type: Variable Frequency Drive (VFD) / Inverter
• Input Voltage: 380–480 V AC, 3-phase
• Rated Output Current: 34 A
• Power Rating: Approximately 18.5 kW (25 HP nominal, 460 V)
• Frequency Range: 0–500 Hz (programmable)
• Control Method: Scalar (V/Hz) and advanced motor control
• Enclosure Rating: IP20 / NEMA Type 1 (standard)
• Integrated Features: Built-in EMC filter and optional braking chopper
• Operating Temperature Range: 0 °C to +40 °C (higher with derating)
• Mounting Type: Wall or panel mounted drive unit

Common Replacements:

• ABB ACS550-01-037A-4
• ABB ACS580-01-038A-4
• ABB ACS510-01-034A-4
