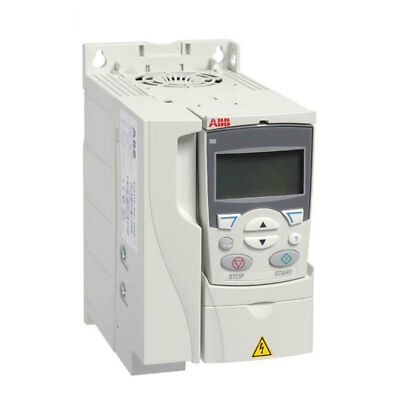

ABB ACS355-03E-02A4-4 Inverter 380V 0.75KW ACS35503E02A44

Description:

The ABB ACS355-03E-02A4-4 Inverter Drive is used in industrial motor control systems to provide compact variable speed control for three-phase AC motors in light-to-medium power applications. Commonly installed in conveyor systems, packaging machinery, mixers, pumps, and small automation equipment where adjustable motor speed and space-saving drive design are required. Maintenance teams and system integrators use this drive for retrofit upgrades, replacement of failed VFDs, control panel expansions, and new machine builds.

Applications:

The ABB ACS355-03E-02A4-4 is commonly used in industrial automation environments including material handling systems, HVAC units, food and beverage processing equipment, printing machinery, and small manufacturing applications where precise motor control improves efficiency, reduces mechanical wear, and enhances overall process stability.

Technical Specifications:

• Manufacturer: ABB
• Model: ACS355-03E-02A4-4
• Product Type: Variable Frequency Drive (VFD) / Inverter
• Input Voltage: 380–480 V AC, 3-phase
• Rated Output Current: 2.4 A
• Power Rating: Approximately 0.75 kW (1 HP nominal, 460 V)
• Frequency Range: 0–500 Hz (programmable)
• Control Method: Scalar (V/Hz) and sensorless vector control
• Enclosure Rating: IP20
• Integrated Features: Built-in EMC filter and braking chopper (model dependent)
• Mounting Type: DIN rail or panel mounted
• Operating Temperature Range: 0 °C to +40 °C (higher with derating)

Common Replacements:

• ABB ACS150-03E-02A4-4
• ABB ACS310-03E-02A4-4
• ABB ACS580-01-02A4-4
