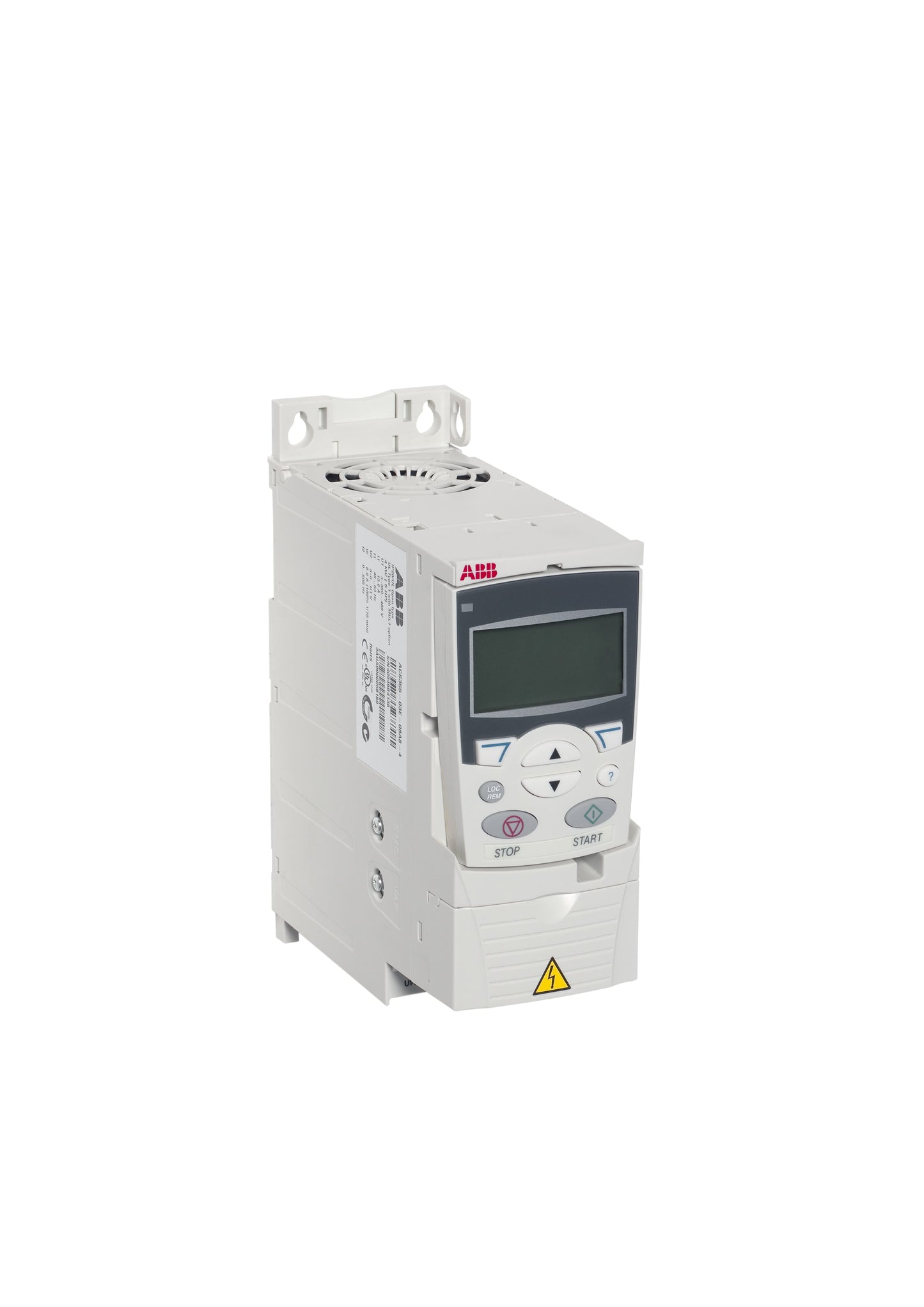

ABB ACS355-03E-03A3-4 Inverter Drive ACS35503E03A34

Description:

ACS35503E03A34 MACHINERY DRIVE 1.1 KW 1.5 HP 3.3 A 380-480 VAC 3 PHASE WALL MOUNT R1 FRAME NO KEYPAD The ABB ACS355-03E-03A3-4 is a compact, high-performance inverter drive designed for controlling the speed and torque of AC motors in industrial applications. With a focus on efficiency and versatility, this drive is ideal for applications such as conveyors, pumps, and fans. It offers advanced motor control with easy programming, making it suitable for both new installations and retrofitting into existing systems. The ACS355 series is known for its user-friendly design, with features like an intuitive keypad and built-in macros for quick configuration.

Technical Specifications:

• Model: ACS355-03E-03A3-4
• Type: Inverter Drive (VFD - Variable Frequency Drive)
• Input Voltage: 3-phase, 380-480V AC
• Output Current: 3.3A
• Power Rating: 1.5 kW (2 HP)
• Frequency Range: 0 to 500 Hz
• Control Type: Scalar (V/Hz) and Vector control
• Operating Temperature Range: -10°C to +50°C (14°F to +122°F)
• Degree of Protection: IP20 (protected against solid objects larger than 12.5 mm, not water-protected)
• Communication Protocols: Modbus, CANopen (optional communication modules available for others)
• Motor Compatibility: Supports asynchronous (induction) and permanent magnet motors
• Features:
• Built-in PID controller
• Brake chopper
• Advanced energy optimization
• Built-in safety features (Safe Torque Off - STO)
• Compact design with flexible mounting options (DIN rail or wall mount)
• Easy setup and programming via keypad or PC software
