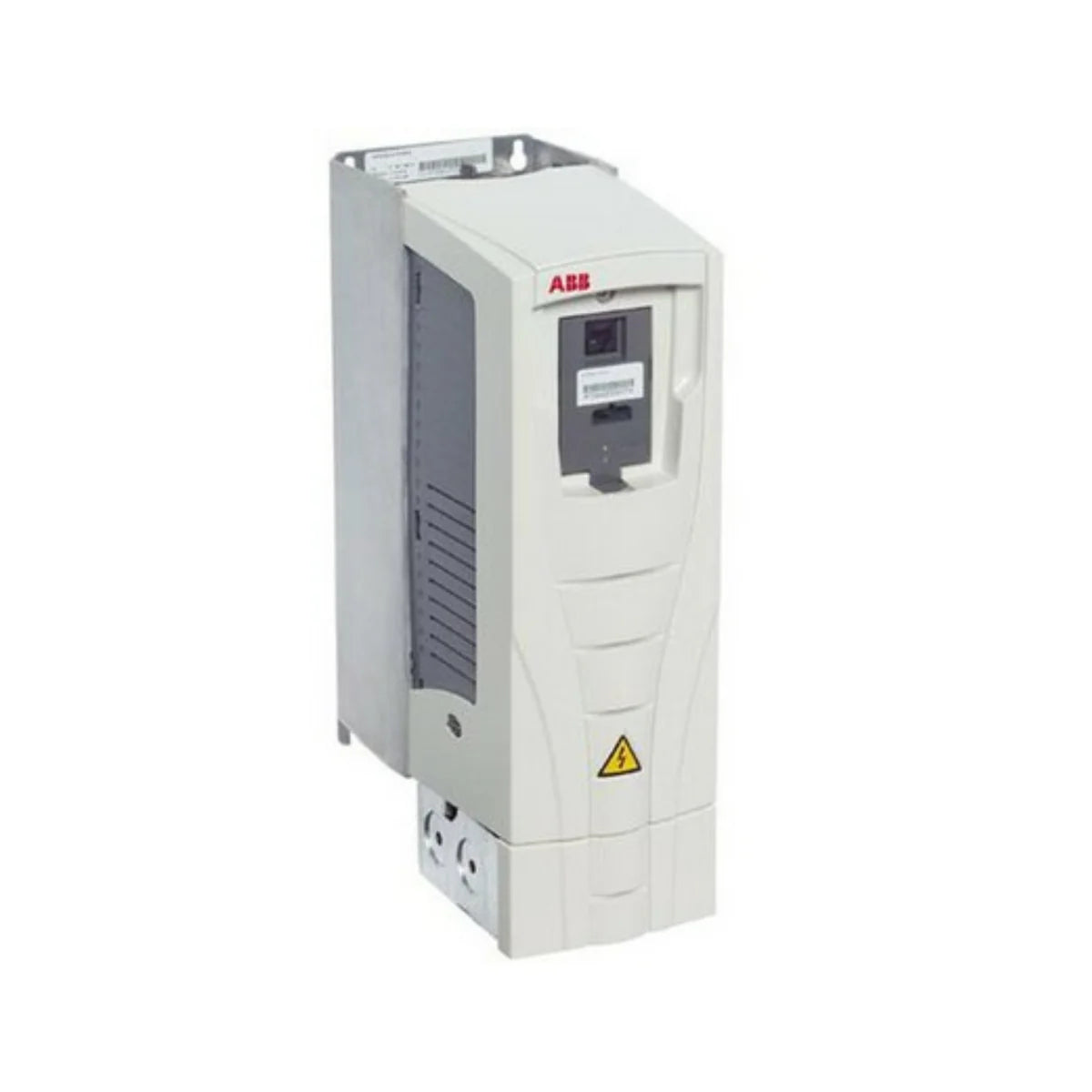

ABB ACS510-01-05A6-4 Low Voltage INVERTER ABB DRIVE ACS5100105A64

Description:

The ABB ACS510-01-05A6-4 Low Voltage Inverter Drive is used in industrial motor control systems to provide reliable variable speed control for three-phase AC motors in low- to mid-power applications. Commonly installed in conveyor systems, packaging machines, fans, pumps, and general automation equipment where adjustable motor speed and enhanced process control are required. Maintenance teams and system integrators use this drive for retrofit upgrades, replacement of failed VFD units, energy-efficient system expansions, and new motor drive installations.

Applications:

The ABB ACS510-01-05A6-4 is commonly used in industrial automation environments including water and wastewater facilities, material handling systems, HVAC units, manufacturing production lines, and processing equipment where precise motor speed regulation improves operational efficiency, reduces mechanical stress, and enhances system stability.

Technical Specifications:

• Manufacturer: ABB
• Model: ACS510-01-05A6-4
• Product Type: Variable Frequency Drive (VFD) / Inverter
• Input Voltage: 380–480 V AC, 3-phase
• Rated Output Current: 5.6 A
• Power Rating: Approximately 3.0–4.0 kW (model dependent)
• Frequency Range: 0–500 Hz (programmable)
• Control Method: Vector and scalar control capability
• Enclosure Rating: IP20 (standard)
• Integrated Features: Built-in EMC filter and optional braking chopper
• Mounting Type: Wall or panel mounted drive unit
• Operating Temperature Range: 0 °C to +40 °C (higher with derating)

Common Replacements:

• ABB ACS355-03E-08A8-4
• ABB ACS150-03E-05A6-4
• ABB ACS580-01-05A6-4
