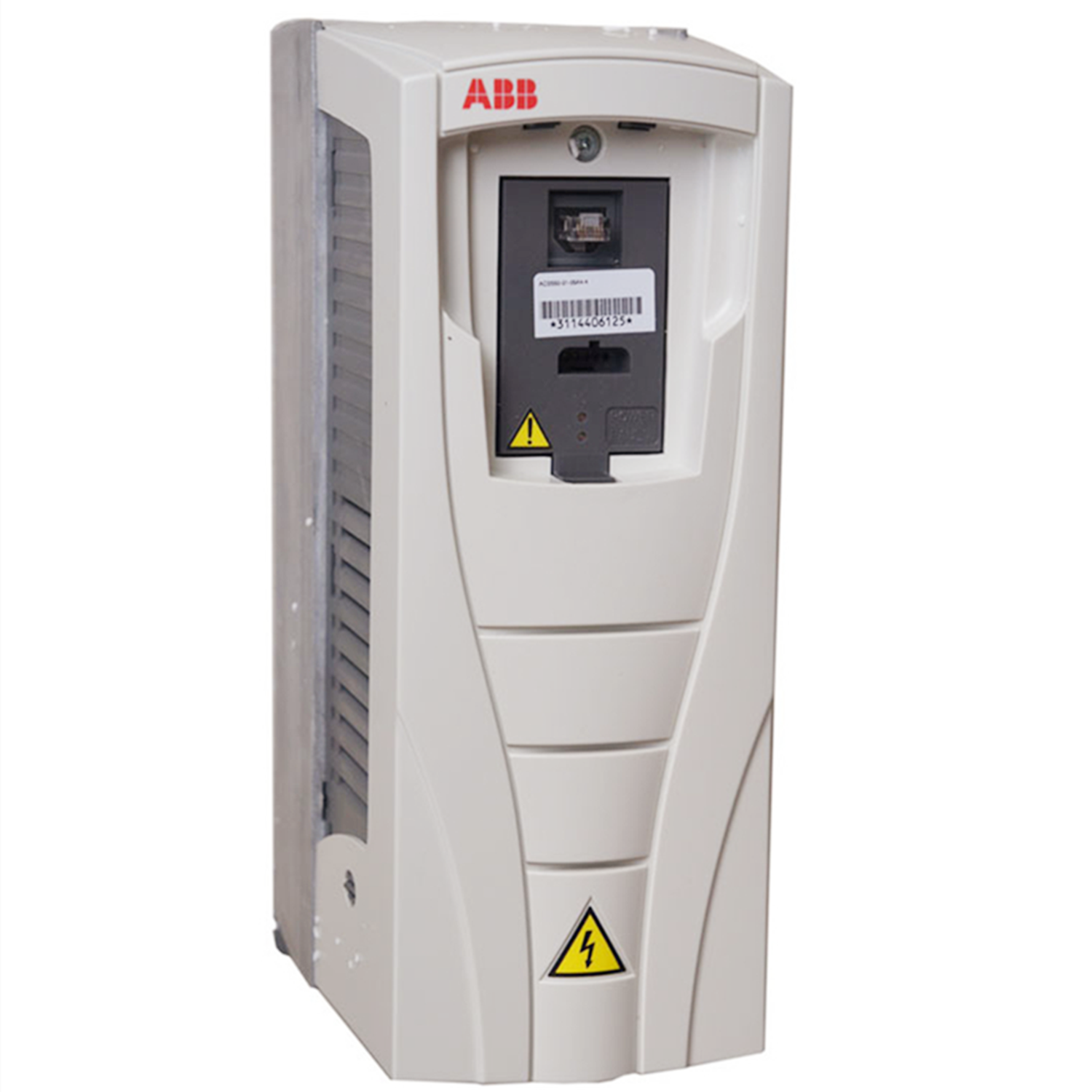

ABB ACS550-01-180A-4 ACS55001180A4 Inverter 75kw

Description:

The ABB ACS550-01-180A-4 Inverter is used in industrial motor control systems to provide variable speed control and energy-efficient operation for three-phase AC motors up to approximately 75 kW. Commonly installed in large pump stations, fans, conveyor systems, compressors, and HVAC installations where reliable motor regulation and reduced electrical stress are required. Maintenance teams and system integrators use this drive for system expansions, retrofit upgrades, replacement of failed VFDs, and control panel modernization.

Applications:

The ABB ACS550-01-180A-4 is commonly used in industrial automation environments including water and wastewater facilities, material handling systems, manufacturing production lines, large HVAC systems, and process control applications where precise motor speed control improves efficiency, reduces mechanical wear, and enhances operational stability.

Technical Specifications:

• Manufacturer: ABB
• Model: ACS550-01-180A-4
• Product Type: Variable Frequency Drive (VFD) / Inverter
• Input Voltage: 380–480 V AC, 3-phase
• Rated Output Current: 180 A
• Power Rating: Approximately 75 kW (100 HP nominal, 460 V)
• Frequency Range: 0–500 Hz (programmable)
• Control Method: Scalar (V/Hz) and vector control
• Enclosure Rating: IP21 / UL Type 1
• Integrated Features: Built-in EMC filter and braking chopper
• Operating Temperature Range: 0 °C to +40 °C (higher with derating)
• Mounting Type: Wall-mounted drive unit

Common Replacements:

• ABB ACS580-01-185A-4
• ABB ACS510-01-185A-4
• ABB ACS550-01-200A-4
