Description:

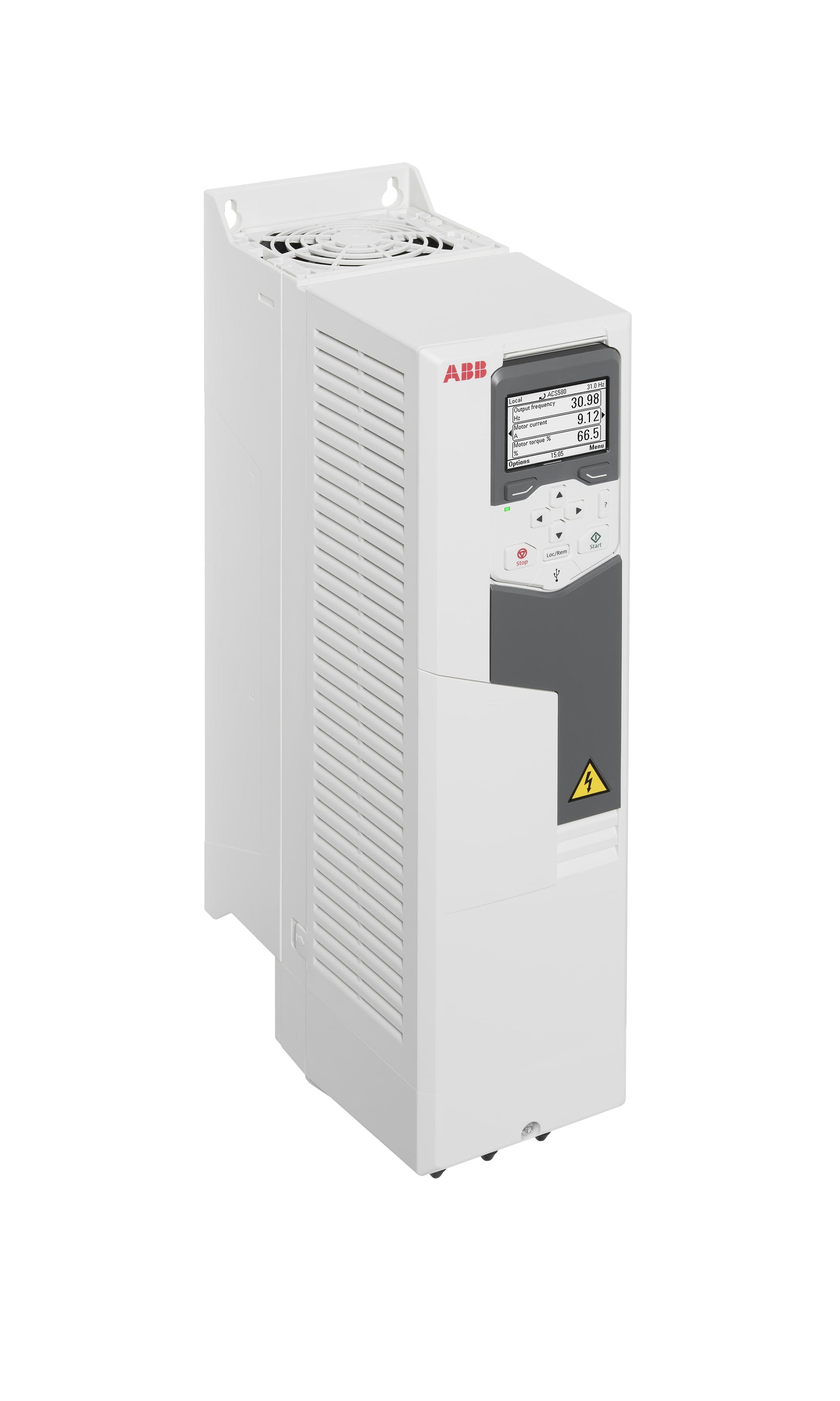

The ABB ACS580-01-026A-4 Drive Module is used in industrial motor control systems to provide variable speed control for three-phase AC motors. Commonly installed in pump systems, fan applications, conveyor lines, compressors, and HVAC equipment where reliable speed regulation and energy efficiency are required. Maintenance teams and system integrators use this drive module for system expansions, retrofit upgrades, replacement of failed VFDs, and new control panel builds.
Applications:Â
The ABB ACS580-01-026A-4 is commonly used in general-purpose industrial automation including water and wastewater pump stations, air handling units, material handling conveyors, cooling towers, and process control systems where precise motor speed control improves efficiency, reduces mechanical stress, and lowers energy consumption.
Technical Specifications:
• Manufacturer: ABB
• Model: ACS580-01-026A-4
• Product Type: Variable Frequency Drive (VFD)
• Input Voltage: 380–480V AC, 3-phase
• Rated Current: 26 A
• Horsepower Rating: Approximately 15 HP (normal duty, 460V)
• Frequency Range: 0–500 Hz (programmable)
• Control Method: Scalar (V/Hz) and vector control
• Enclosure Rating: IP21 / UL Type 1
• Integrated Features: Built-in EMC filter and braking chopper
• Operating Temperature Range: 0°C to +40°C (higher with derating)
• Mounting Type: Wall-mounted drive module
Common Replacements:
• ABB ACS550-01-031A-4
• ABB ACS510-01-031A-4
• ABB ACS580-01-027A-4
