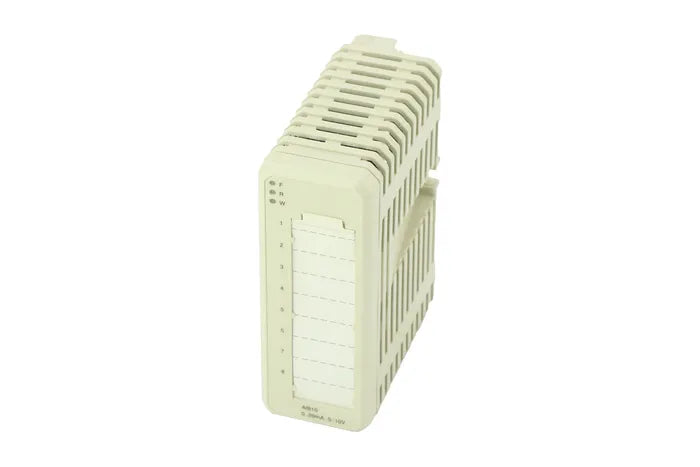

ABB AI810 3BSE008516R1

DESCRIPTION

The ABB 3BSE008516R1 is an AI810 analog input module from the S800 I/O series, designed for use with ABB's distributed control systems (DCS), such as AC 800M. It features 8 current input channels, each supporting 4–20 mA signals with 12-bit resolution. Designed for high reliability in process automation, it includes channel isolation and diagnostics, and communicates via a ModuleBus when used with a communication interface unit.

TECHNICAL SPECIFICATIONS

Part Number: 3BSE008516R1
Model: AI810
Series: S800 I/O
Number of Channels: 8 analog inputs
Input Signal: 4–20 mA
Resolution: 12-bit
Input Resistance: 250 ohms
Isolation: Channel-to-channel and channel-to-bus
Diagnostics: Yes (open circuit detection, status indicators)
Power Consumption: Approx. 1 W
Mounting: On terminal base unit (e.g., TU810, TU830)
Operating Temperature: -20°C to +55°C
Dimensions: 45 × 119 × 102 mm (W x H x D)
