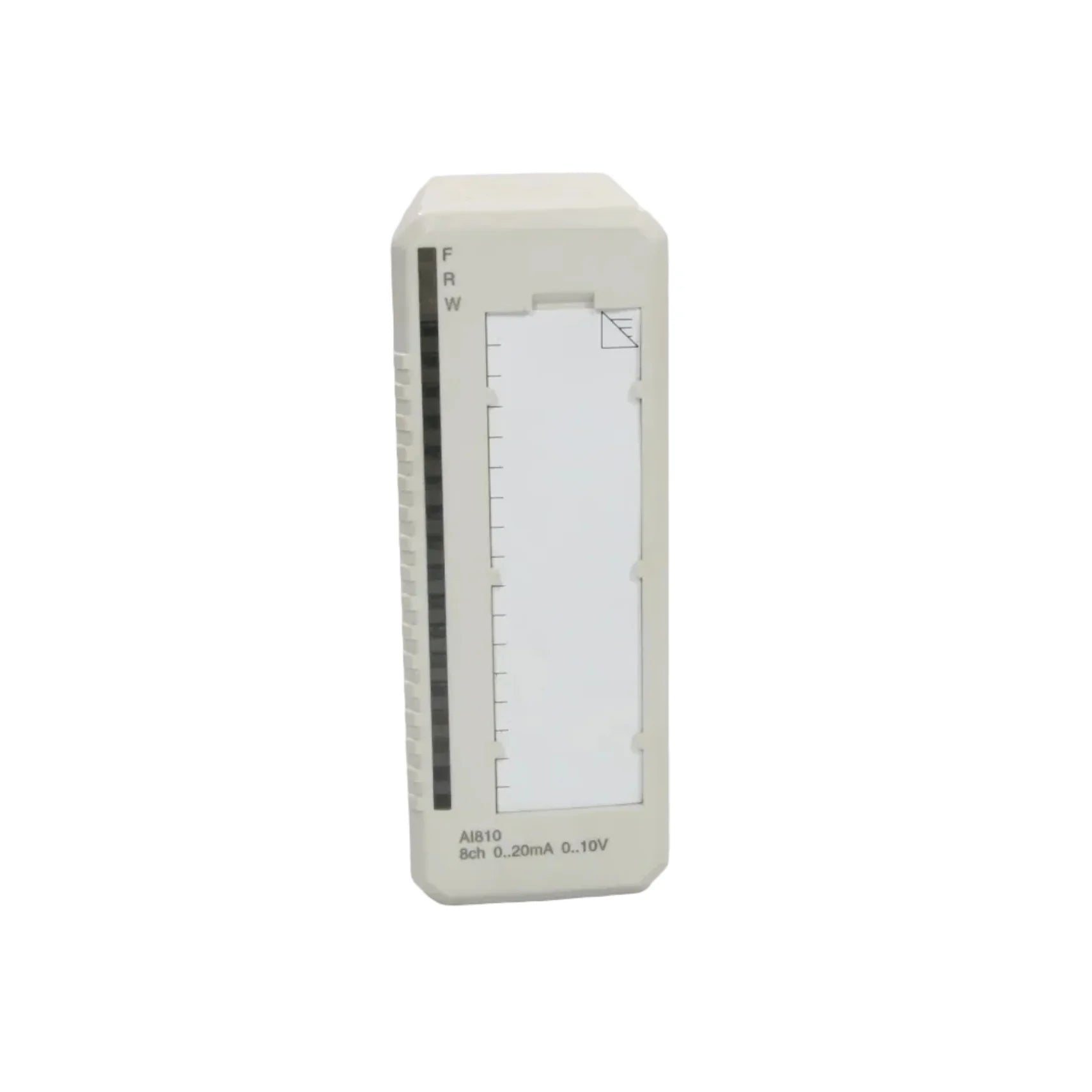

ABB AI810 Analog Input S800 I Module 3BSE008516R1

Description:

The ABB AI810 Analog Input Module (3BSE008516R1) is a PLC input module used in ABB S800 I/O and 800xA automation systems. Commonly installed in distributed control systems and industrial process control environments to convert field analog signals into digital data for PLC processing. Maintenance teams, OEMs, and system integrators use this module for replacement, retrofit, and precise analog signal acquisition.

Applications:

The ABB AI810 Analog Input Module is used in industrial automation systems requiring accurate analog signal measurement, including process control, manufacturing systems, energy plants, and chemical processing. It is ideal for applications that demand reliable data acquisition, stable signal conversion, and seamless integration with ABB control platforms.

Technical Specifications:

• Brand: ABB
• Part Number: 3BSE008516R1 (AI810)
• Product Type: Analog Input Module (PLC I/O)
• Series: S800 I/O
• Number of Channels: 8 analog inputs
• Input Signal Types: 0–20 mA, 4–20 mA, 0–10 V, 2–10 V
• Resolution: 12-bit
• Input Type: Single-ended, common return
• Input Resistance (current): 250 ohms with PTC protection
• Protection: Short-circuit protection up to 30 V DC
• Isolation: Group isolation from ground
• Mounting Type: Rack-mounted (S800 backplane)
• Weight: Approx. 0.19 kg
• Application: Analog signal acquisition in PLC/DCS systems

Common Replacements:

• ABB AI815 Analog Input Module
• ABB AI825 Analog Input Module
• ABB AI843 Analog Input Module
