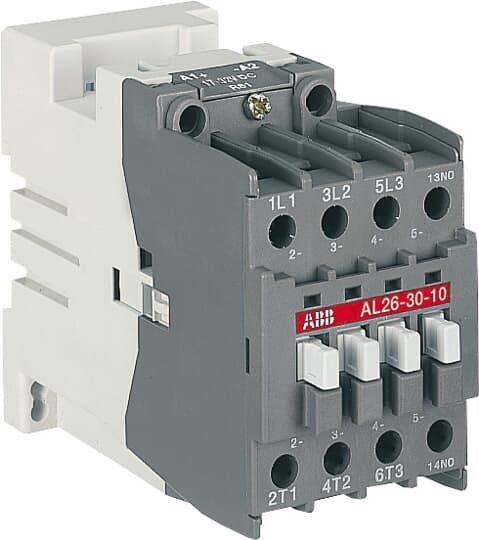

ABB AL26-30-10 Auxiliary Contacts 24V AL26-3010

Description:

The ABB AL26-30-10 auxiliary contactor module is used in industrial automation systems to provide auxiliary switching and control functions for contactors and motor control circuits. Commonly installed in control panels and electrical cabinets alongside main contactors to extend control logic and signaling capabilities. Maintenance teams and system integrators use this unit for motor control systems, automation upgrades, auxiliary circuit expansion, and replacement of worn or failed contact components.

Applications:

The ABB AL26-30-10 is commonly used in motor control centers, conveyor systems, HVAC equipment, industrial machinery, and automation systems where auxiliary contacts are required for control signaling, interlocking, and status indication within electrical circuits.

Technical Specifications:

• Manufacturer Part Number (MPN): AL26-30-10
• Product Type: Contactor with Auxiliary Contact
• Series: ABB AL Series
• Main Contacts: 3 NO (normally open)
• Auxiliary Contacts: 1 NO
• Rated Operational Voltage: Up to 690 V AC / 220 V DC
• Coil Voltage: 24 VDC (variant dependent)
• Rated Current (AC-3): ~26 A @ 400V
• Control Circuit: DC operated coil
• Mounting Type: DIN rail or panel mount
• Terminal Type: Screw terminals
• Mechanical Design: Block type contactor with add-on auxiliary options
• Application Environment: Industrial motor control and automation systems

Common Replacements:

• ABB AL26-30-01
• ABB AF26 Series Contactor
• Schneider LC1D25 Contactor
