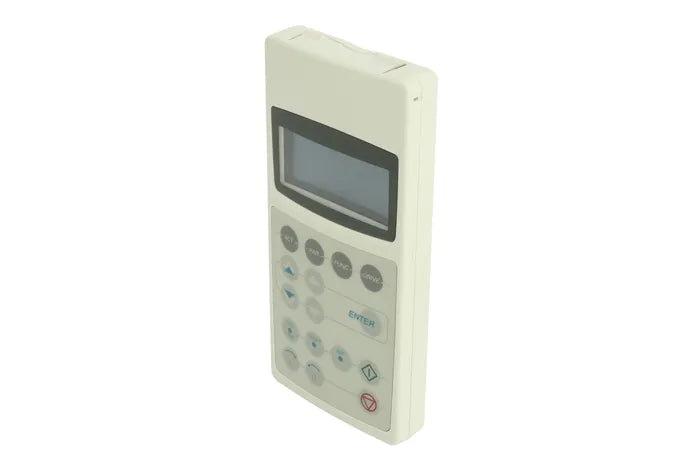

ABB CDP312R Control Panel CDP312R

Description:

The ABB CDP312R Control Panel is used in ABB industrial drive systems to provide local parameter configuration, monitoring, and diagnostic control functions. Commonly installed on ACS series variable frequency drives operating pumps, fans, conveyors, and process equipment where on-site drive setup and real-time monitoring are required. Maintenance teams and system integrators use this control panel for drive commissioning, parameter adjustments, troubleshooting, and replacement of damaged operator interfaces.

Applications:

The ABB CDP312R control panel is commonly used in industrial automation environments including HVAC systems, water and wastewater facilities, material handling systems, manufacturing production lines, and general motor control installations where local access to drive status and parameter programming improves maintenance efficiency and system reliability.

Technical Specifications:

• Manufacturer: ABB
• Model: CDP312R
• Product Type: Drive Control Panel / Operator Interface
• Function: Local parameter setting and monitoring for ABB drives
• Compatibility: ABB ACS series drives (model dependent)
• Display Type: LCD display with keypad interface
• Communication: Direct connection to compatible ABB drive units
• Mounting Type: Panel-mounted or door-mounted installation
• Power Supply: Supplied directly from connected drive
• Application Category: AC drive configuration and diagnostics
• Operating Temperature Range: Industrial-rated conditions

Common Replacements:

• ABB CDP312
• ABB CDP312R-M
• ABB ACH-CP-B
